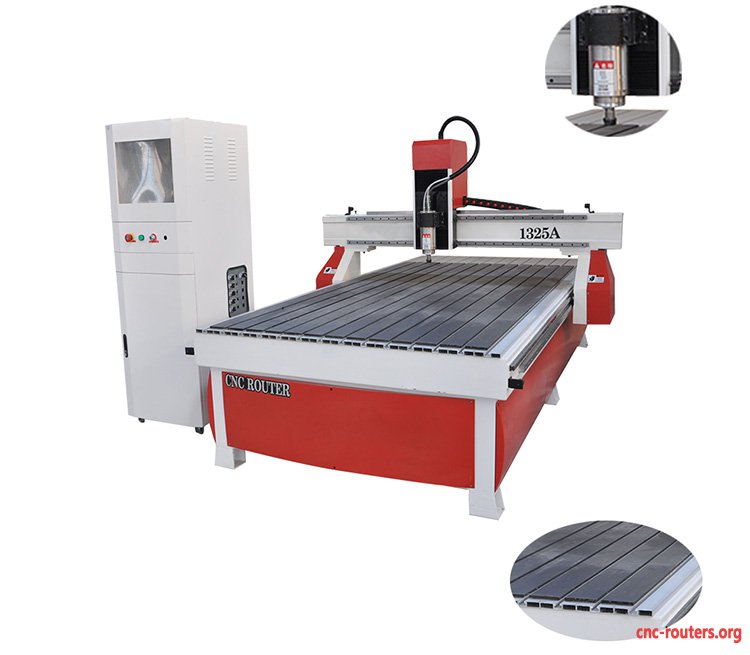

Regular Model 1325 Wood CNC Router Machine /1300*2500mm Working Area Wood Carving Machine
Regular Model 1325 Wood CNC Router Machine /1300*2500mm Working Area Wood Carving MachinePerformance and features:

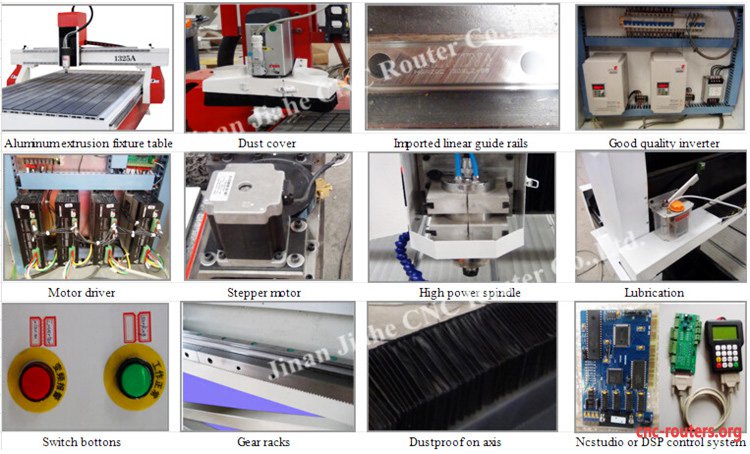

1. Exquisite design and elaborate appearance, good rigidity,small distortion and little shake.
2. XYZ guide rail adopt HIWIN linear square guide rail, it is more stable and has longer life than the normal round one.
3. XY transmission use rack and pinion,which ensure the runing speed.
4. Z transimission uses high precision ball screw, can avoid the spindle suddenly up and down.
5. Vacuum table, no need to fix the materials, easy to operate and save time.
6. DSP control system, easy to perate and easy to move.
7. 24 hours continuous working,high working efficiency,perfect choice for wood door making.
8. 0.002mm working precision makes sure best and various design.
9. Vacuum table and ATC spindle cnc router is available.
Model
JK-1325w
Structure
Steel tube
Table
Aluminum+ABS Table /Vacuum table
X Y Z working size
1300*2500*250mm
X Y Z rail
HIWIN Linear square guide rail
X Y transmission
Rack & pinion
Z transmission
Ball screw
Max. speed
20m/min
Max. working speed
15m/min
Spindle
4.5KW
Spindle speed
24000rpm
Collets
ER20 3.175-12.7mm
Precision
0.01mm
Repeat reposition accuracy
0.025mm
Inverter
Sunfar 5KW
Motor
Stepper motor
Driver
Stepper driver
Voltage
AC 380V 50HZ three phase
Transformer
Yes
Lubrication
Yes
Control system
DSP
Software
Artcam/Ucancam/Type3
Command language
G-code, plt, uoo, mmg
Package
Inner package: stretch film.
Outside Package: Free fumigation wooden case for export.
Shipping
Shipping: by ship from QINGDAO to Your port.
Company Info
We are engaged in research of CNC system and manufacture and sales of CNC routers, including woodworking cnc router, stone cnc router, metal engraving machine, laser engraving machine, etc. Professional design scheme makes perfect combination between performance, precision and appearance.

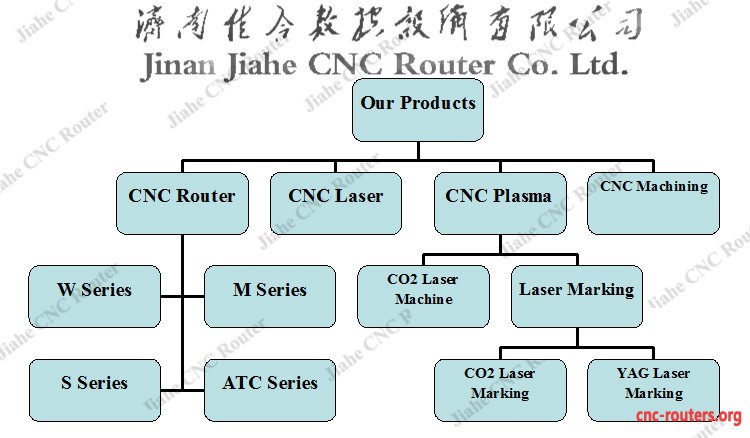

What do we supply:
W series:CNC router mainly for wood, plastic, acrylic, double-color board
etc. non-metal materials cutting or engraving.
S series: CNC router mainly for stone, marble, granite etc. engraving, 2D
relief or 3D statue.
M series: CNC router mainly for metal, like copper, steel, aluminum,
silver, gold, stainless steel, etc. metal materials engraving
letters, relief, mould etc.
ATC series: CNC router with Auto tool changer.
Why Choosing Jinan Jiahe CNC?
1. First-class factory meets international production plant's standard, ten years' manufacturing and export experience.
2. Owning advanced domestic cnc machining production equipments.
3. Short production time for high quality machine, one year warranty and lifetime free maintenance.
4. OEM and ODM services available.
5. Real cost-effective cnc routers and harmonized user experience.
6. With CE, ISO9001 certifications.
7. Engineers available to service machinery overseas
8. Intimate after sale service through Email, Skype, Whatsapp, Wechat etc.
