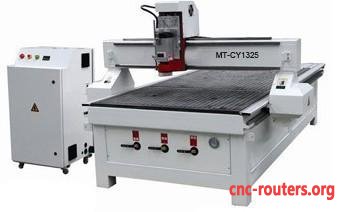

wood cnc router MT-CY1325
wood cnc router MT-CY1325
WOOD CNC router MT-CC1325
Performance:
--MT-CC1325 is the universal cnc router with high cost-performance.
--Vacuum table with high vacuum capacity, adsorb different sizes materials.
--- High work speed, work effect high, engraving speed reach to 18m/min.
---This model has MT-CC1530/MT-CC2030/MT-CC2040 different work size for optional.
Application:
--furniture: wood. kitchens, office, solid wood ,chairs, tables, windows ,door etc.
--decorate: Acylic,PVC, MDF, artificial stone, Plexiglas, plastic and copper aluminum etc metal materials engraving and cutting work.
--Art and crafts: wood,bamboo,marble,double color board etc materials.
Parameters:
Item
parameters
Optional
X axis trip
2440
1500/2000
Y axis trip
1220
3000/4000
Z axis trip
200
300/400
Worktable
Vacuum table
X.Y.Z form
X.Y gear way; Z ball screw
Worktable area (mm)
1250x2500
Spindle power(kw)
3.5KW air cooling
4.5kw/6.0kw
Spindle revolving speed(rpm)
0-18000
Motor
Stepper motor
CNC controller
NC STUDIO
DSP hand controller
Positioning accuracy(mm)
+0.1mm
Repeatability precision(mm)
+0.1mm
Work voltage
AC380v/50HZ
Idle speed (mm/min)
＞32000
Work speed (mm/min)
＞15000
Pleaser contact us for more informationSubject
Content (within 1000 characters)
Name
Telephone
company name
wood cnc router MT-CY1325
MORN TECH limited
located in the high-tech development zone in Jinan city, north of
China. Our company is the professional manufacturer and exporter of
mechanical CNC router machine, laser machine cutting machine and other relevant equipment. We have registered our own trade mark "MORN". MORN series machine include wood CNC router , laser engraving
machine,co2 laser cutting machine, YAG laser marking machine,
cutting plotter, metal mould engraving machine etc.From the year
2009,MORN series machine reach to more than 120 different types. We are a team of more than 150 people; we have management dept.
technology R&D dept. quality monitoring dept and after-sales
service. We can offer you satisfactory service. All the products had been tested and got the CE (0437)certificate. and the laser engraving and cutting machine got the FDA (US-CDRH)certificates. Our R&D department engaged in the development of new
products and high-end technology. Scientific Management, Structure
and Design, and Advanced Technology, reasonable price make the
products of our company attained favorable comments from the
clients, and our business have developed rapidly. The client just
tell us your requirement, we will offer the most professional
advice, high quality goods and services. MORN series laser engraving and cutting machine, CNC router are
widely used in many industries. Such as Advertisement, gift, shoes,
toys, computers, garments, model cutting, building, packaging, and
paper industry etc. MORN-TECH welcomes you to experience our competitive quality, high standards
and excellent service.
