RAYFINE 4 Axis Wood CNC Router RF-1313-4.5KW for Both Flat a

RAYFINE 4 Axis Wood CNC Router RF-1313-4.5KW for Both Flat a
  • Type:5 axis cnc router
  • Country:China
  • Registration Date:2016-07-24 10:55
  • Related Keywords:RAYFINE,Axis,Wood,Router,RF-13

Product Description



WOOD CNC ROUTER MACHINE RF-1313-4.5kw:

Working area:

1300x1300x300mm

Spindle type:

China water cooled spindle or Italian air cooled spindle

Spindle power

2.2kw or 3kw, 4.5kw

Spindle rotating speed

0-24000rpm or 0-18000rpm

Power (except spindle power):

6 KW (include powers of: motors, drivers, inverters and so on)

Power supply:

AC380±10, 50 HZ

Max moving speed:

35m/min

Max. Working speed:

25m/min

Worktable:

T slot table

Locating precision:

< 0.01mm

Min shaping character:

Character: 3x3mm, letter: 2x2mm

Operating temperature:

5°C-40°C

Working humidity

30%-75%(without condensed water)

Working precision:

±0.05mm

System resolution:

±0.001mm

Control configuration:

4 axis DSP controller

Data transfer interface:

USB(offline)

System environment:

WINDOWS 2000/WINDOWS XP/ windows 7

Spindle cooling way:

water cooled or air cooled

Graphic format supported:

G code: *. U00, * mmg, * plt, *. Nc

Compatible software

ARTCAM, UCANCAM and other CAD or CAM softwares….

Cutting thickness:

0-70mm also (depends on different material)

Z tool censor:

yes

Whole machine dimension:

2550x1750x1700(mm)

Net weight:

800kgs

Gross weight

1000kgs

packing

Plywood box


Features of this equipment:
1. Powerful rack gear and pinion drive in black color anti-rust
2. It can be used cut/engrave on both cylinder and flat object
3. 4.5KW brushless water cooling spindle motor
4. Geniune Taiwan imported HIWIN linear guide rails
5. Oil lubrication system
6.DSP offline controller more convinient for operation



Quality parts adopt

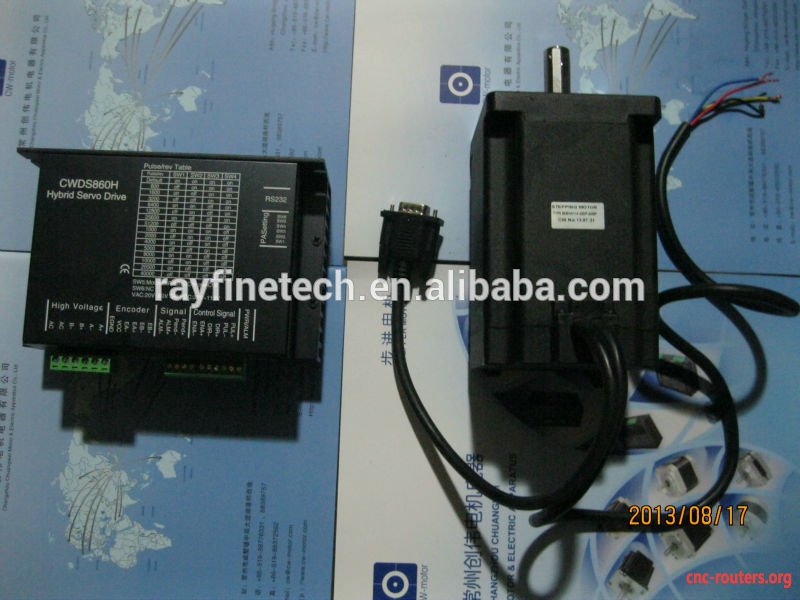

 hybrid servo motor with driver

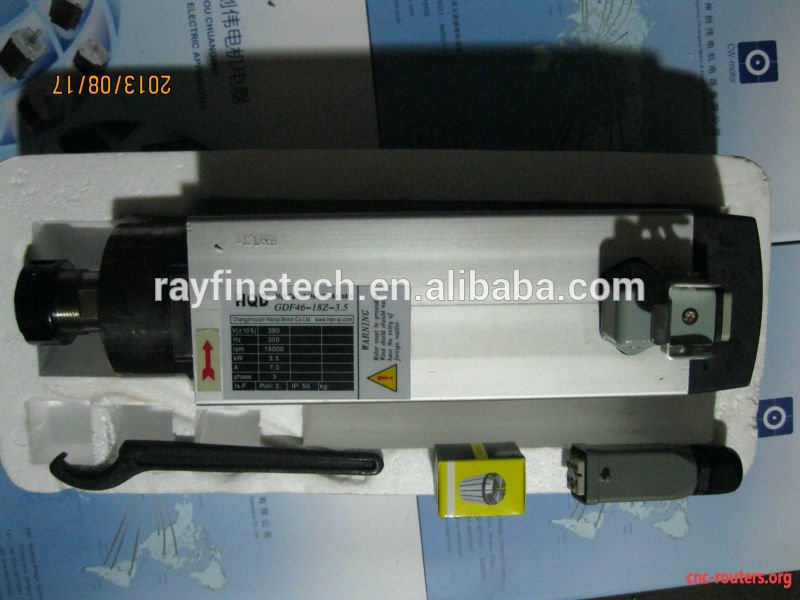

Quality air cooling spindle motor

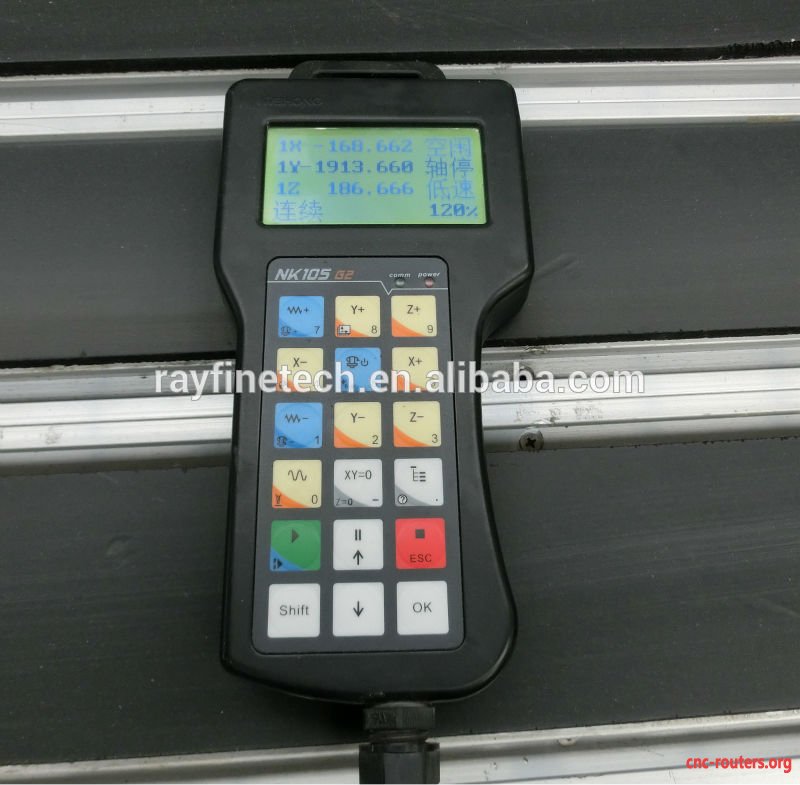

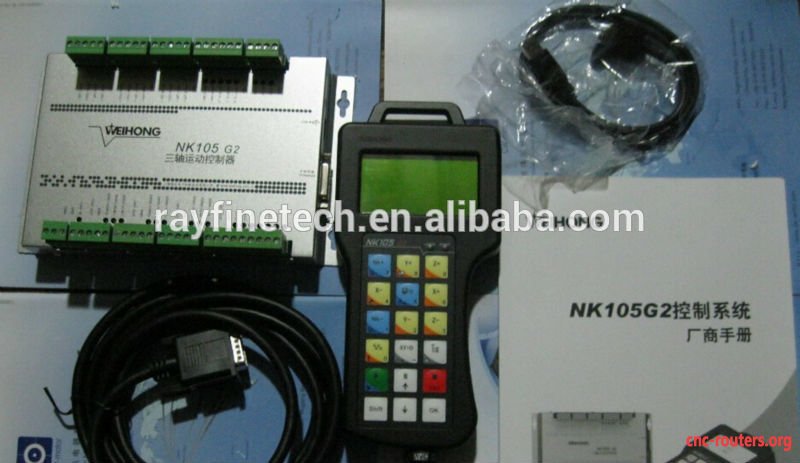

durable and stable weihong NK105-G2 DSP control system

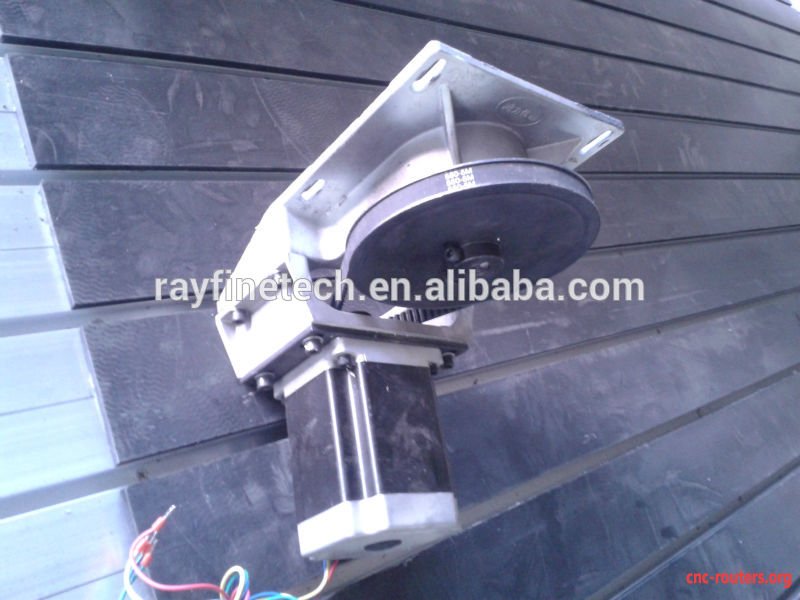

gear box

Taiwan imported linear guide rails and heavy aluminum files table
