CNC router machine
1.Specifications
1)Double motors and drivers of Y axis which can ensure steady movement
2)Rack gear transmission can ensures fast speed and high accuracy
3)Imported square rail ensures high accuracy and heavy workload
4)Adopt vacuum system. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials
5)Lathe bed is cast by Iron can load heavy material
6) Separated control box
2.Parameters
Model
XY-1325
XJ-2030
Working range
1300*2500*180mm
2000*3000*180mm
Reposition accuracy
0.02mm
Working speed
25m/min
Accuracy
0.0254mm
Spindle
3kw. Invert-driven spindle motor cooled by water(or air)
Rotate speed
24000rpm/min
Working voltage
110v/220v/380v 50Hz/60Hz
Cutting tool
Φ3.175, Φ6, Φ12.7
Command
G-code*mmg*plt.*u00
Vacuum
4.5kw/5.5kw vacuum pump
Working mod
AC stepper motor and driver
Control system
DSP(128MB) or PC/MC control system
Drive machine
Gear-wheel on x.y.z axises
Interface
USB

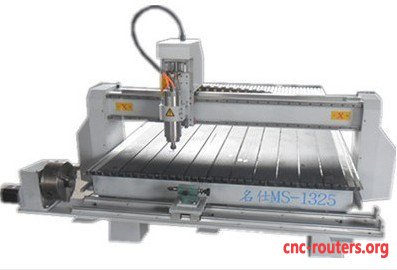

Product Detail Image
