Wood CNC Router GM-1325H
Product Description
1.Spindle power 6KW 2.Drive Motor Japan servo motor 3.Control
system LNC Taiwan
Product Feature
Main Characteristics: It is an Automatical Tool Change
machine(ATC).The excellence of this models is the price and the
automatical tool change function. Best spindle,three-axis square
guide drive, Japan servo motor etc are the main components which
have to import from abroad. It is a machine with high
configuration, the double-track bilateral with LNC
Taiwan-motivation, also a heavy cutting-processing models.
1.Sub-keyboard control: simple, convenient and easy to learn the
sub-keyboard operation, the user can quickly flexible use the
equipment. More independence. 2.Taiwan's advanced CNC control
systems, intelligent processing cross-border protection functions:
preventing machinery from colliding due to that design layout
exceeds process range.Intelligent processing speed control: the
processing speed can be controlled separately, truly improving
processing efficiency, extending tool life and increasing the
yield. 3.Cleaning, adsorption devices: cleaning system can take the
wood flour in the course of processing wood to matain the table
clean and disguise maintenance for the equipment;absorption system
replaces the previous way of mechanically fixing plate to improve
the processing time for the plate. 4.The advanced file pretreatment
function helping users promptly corrected the mistakes in
processing documents with good compatibleness for the proceeding
code generated by domestic and foreign multi - Kind of software
(such as Mastercam, Typ3, UG, Artcam, Caxa, etc.).Advanced
three-dimensional curves prediction algorithm, steady foldline to
ensure the speed and accuracy of the curve. 5.Windows-based
platform for the NC embedded systems,unlimited upgrad and expansion
fuction. Synchronization of anti-jamming software and hardware
design, to ensure that System time is in reliable operation. A
breakpoint, continued carving off function, back to oringinal point
with automatic correction features effectively guaranteed the
accuracy of in a long processing work. 6.Seamless steel structure
welding with strong rigidity undeformed character. Applicable
Industry: Furniture industry, solid wood furniture, solid wood
doors, decorative materials, cabinet doors, computer tables, panel
furniture, office furniture, wood Speaker system, kitchen utensils,
and other wooden furniture processing.
Product Specification/Models
Product model GM-1325C X,Y working area 1300mm*2500mm Z working
area 220mm Processing precision 0.02mm Reposition precision 0.05mm
Table structure Vacuum table X,Y,Z structure Z ball screw X,Y
gearwheel Self-consuming power 2.8KW Max idling speed 40000mm/min
Max working speed 25000mm/min Way of ATC Linear The number of knife
8pcs or 10pcs Spindle power 6KW Working voltage AC380V/50Hz Spindle
rotating speed 0-24000rpm/min Drive Motor Japan servo motor Control
system LNC Taiwan Compatible CAD/CAM software
TYP3/Artcam/Castmate/Ucancam Surroundings for software
Windows98/2000/xp Net weight 2000kg Gross weight 2300kg

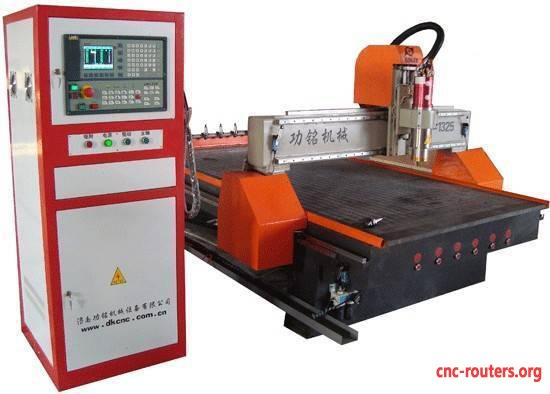

Wood CNC Router GM-1325H images
