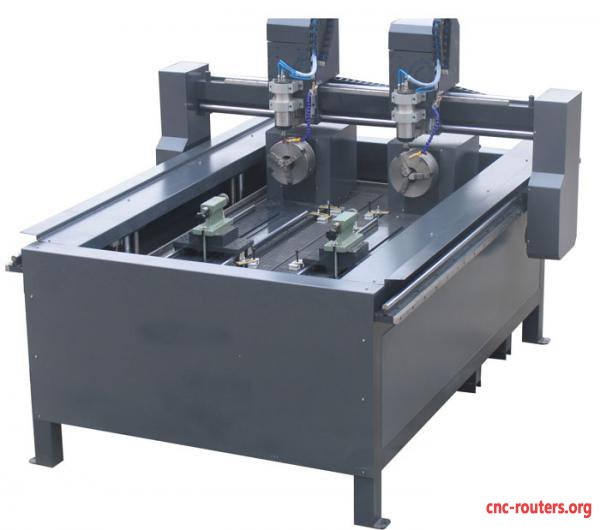

High Efficiency Wood CNC Router JC1315-4(four head)
1. Four separate spindles
2.Dust proof design
3.Independent control box
High Efficiency Wood CNC Router JCG135-4(Four heads)
--
Performance Features
--
1.German-imported high precision and pre-tightening ball screw rail, minimize the gap caused by moving.
-
2.Import four-row steel balls linear guide rail, self-lubricating block, which guarantee the equal stress direction, mechanical strength and precision.
-
3.Using the breakpoint memory, guarantee that the machine is also under processing in the accident (cutting knife) or the next day.
-
4.Unique preservation of multiple oringinal working pieces.
-
5.Gantry movement, strengthen the surface, durable, long life without deformation, high accuracy of reposition.
-
Suitable Materials:
-
--- Wood, Plastic, Aluminium, Di-Bond, Engraving Board, Fomex.Engineering plastics, marble, acrylic, perspex, PVC, Composite panel, Copper, Alloys, MDF, etc.
-
PARAMETERS:
-
NO.
Description
Parameter
1
X-Y-Z Working Area
1300x1500x120mm
2
Table Size
1440X1640mm
3
X-Y-Z Traveling Positioning Accuracy
±0.05/300mm
4
X-Y-Z repositioning Positioning Accuracy
±0.04mm
5
Table Size
T-slot Extrusions
6
Frame
Cast Steel
7
X, Z Structure
Hiwin Ball Screw
8
Y Structure
Rack and pinion, Square linear rails
9
Max. Power Consumption(Without spindle)
1.2K
10
Max.Rapid Travel Rate
10000mm/min
11
Max.Working Speed
6000mm/min
12
Spindle Power Motor
1.5Kw-spindle
13
Spindle Speed
0-24000RPM
14
Drive Motors
Stepper Motors
15
Working Voltage
AC220V/50/60Hz (Option: 380V)
16
Command Language
G Code
17
Operating System
DSP System (Mach3 PC Software)
18
Interface
USB
19
Flash Memory
128M (U Disk)
20
Collet
ER16
21
X-Y Resolution
<0.01mm
22
Software Compatability
Ucancam software, Type3 Software, (Option:Artcam Software)
23
Running Environemt
Temperature: 045
Relative humidity: 30%75%
24
Packing Size
1850x1850x1450mm
25
Net Weight
380KG
26
Gross Weight
500KG
All parameters above subject to change without prior notice
High Efficiency Wood CNC Router JC1315-4(Four head)
Jinan Fanghua CNC Equipment Co., Ltd. is an outstanding CNC
equipment manufacturer in China.
Main products :
1. CNC wood Routers
2. CNC stone /glass engraving machines
3. Laser engraving and cutting machines
4. CNC plasma cutting machines
5.Other advertising equipments .
6.Parts and accessories from above .
We use wholly imported top parts which are from Italy, Japan and
Germany. Having attained the certifications of CE and ISO9001, our
products are widely used in the fields of wood working, metal
processing, stone cutting, model engraving, advertising signs,
gifts and crafts, textile and leather, packing and printing, as
well as room decoration.
Operation principles:
Leading technology - leading CNC laboratories and workshops, select
professional elites annually.
Assured quality - ISO9001 quality management system monitors the
entire working process.
Perfect service - implement real worry-free service, timely
response to every customer's feedback.
Characteristic culture - "pursuing quality, creating value for
every customer".
The demands and recognition from customers always motivate us to
keep improving and developing. We welcome domestic and overseas
customers to visit our factory for guidance and business.
