XK45MT-3B Wood CNC Router machine with 3 aircylinder 3 spindle heads
Using Industry:
XK45MT-3B add cylinders on the basis of three-spindle in spindle, which make the machine can working three different router for three kinds of patterning on the same material, a function of better, more efficient, more convenient for the users. Professional Services in the production of woodworking, cabinets and office furniture such as plate, for flat engraving and horizontal play keyhole, slotting use.
Features:
1. equipped with 2 heads; the machine one time can complete the works done by several machines, to save cost and improve the working efficiency
2. the distance between heads can be adjusted according to the working pieces being processed
3. it is possible to start any one of the heads only
4. spindle power is also selected according to customer’s requirements
5. rotary attachment is optional, which enable the machine to engrave on column work pieces like table eg
6. especially firm structure and special design on details make the machine to achieve the best performance results
Parameters:
Description
X,Y,Z working area
1300*2500*200mm(51.2*98.4*7.9inch)
X,Y,Z traveling position accuracy
X,Y,Z reposition accuracy
Table surface
PVC
Lathe bed
Steel-welding structure
X,Y transmission
High accuracy gear rack
Z transmission
Imported ball screw
Max power consumption(without spindle)
12kw
Max travel speed
30000m/min
Max working speed
20000m/min
Spindle power motor
4.5kw (3kw, 6kw for option)
Spindle speed
24000r/min
Driver system
Step motor
Working voltage
380V/220V
Command language
G code
Operation system
DSP
Interface
USB
Flash memory
128M
Collect
3.175-12.5
X,Y resolution
Software
Type3, Wentai, ArtCAM

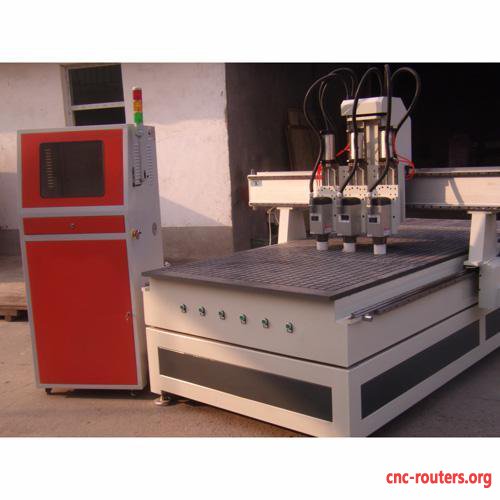

XK45MT-3B Wood CNC Router machine with 3 aircylinder 3 spindle heads images
Jinan creat star cnc router co., ltd
Jinan creat star cnc router co.,ltd is a professional manufacturer specializing in the R&D,marketing and sales of cnc machines.Our products are widely applied in the wood engraving,mould making and drilling and non-metal engraving fields.
Our company covers an area of 2,000 m2 with 15 assembling lines,and has more than 30 experienced workers,well trained R&D and after-sales staffs.Each year,1000 sets of cnc machines and excellent service are provided for different demands.
our HAWK brand cnc machines are of CE certificate and have been exported to many countries in the world markets,besides, convenient distribution channels have been established in India, Ghana, Saudi Arabia,different customers from diverse industries have found our machines to be reliable and indispensable to their company.
Different cnc products can be provided according to the market demands,one is for the wood working,multiple functions,such as engraving,drilling ,cutting and slotting,can be well done on wood,MDF,aluminum,acrylic and marble;the second is for sign making,it can engrave and cut on acrylic,steel,plastic marble etc;the third is for mould making,it can engrave and drill on aluminum,metal,plastic for mould making,also gluing and engraving in the Expendable casting proces(ECP)can be well done;Besides,our brand laser machine can engrave and cut non-metal materials such as leather ,glass,acrylic and plastic.
Reliable distributors are urgently wanted in the world markets,and we look forward to establishing a long term businese relationship for mutual benefits.
