China listed manufacturer of laser equipmentJMSCJG-130250DT All-purpose CO2 High precision Metal and Non-metal Laser Cutting Machine
Product Feature
* It adopts steel girder structure.
* Precision ball screw drive and servo motor drive system bring you high cutting precision.
* 400W CO2 RF metal laser tube produces good laser beam, stable power and long working life, low cost and maintance free.
* The strip working table reduces the contacting area with work piece, which ensures high quality cutting. Following exhaust system has good performance, saving energy consumption for you.
* The smart nesting function enhances the utilization rate.The 5inch CNC system provides online and offline for your choice, easy to use.
* Wide application, suitable for metal and non-metal cutting.
Application Field
Suitable for high precision cutting of stainless steel, carbon steel, acrylic, wood, MDF, plywood etc metal and non metal sheets.
Suitable for thin sheet metal processing, and high precision cutting demand companies, eg sheet metal processing factory, ads producing companies etc
Technical Parameter
Laser type CO2 RF metal laser tube
Laser power 400W
Cutting area 1300mm*2500mm
Cutting table Special zinc-iron honey comb working table/ Strip panel working table
Repeating location accuracy +/- 0.1mm
Motion system Servo motion system, LCD display CNC control, Ball bearing screw lead system
Cooling system Constant temperature water chiller
Power supply AC220V +/- 5% / 50/60Hz
Format support AI, BMP, PLT, DXF, DST, etc.
Standard collocation Mini air compressor, automatic control high pressure blower valve
Select collocation 100W/150W/200W/300W CO2RF metal laser tube (200W higher power can cut metal plate)
Related models: JMSJG-8550 / JMSJG-13090/ JMSJG-130160
Why do you choose Golden Laser?
* Provide full set laser processing solutions, leading hardware and software advantages
* Self-developed core technology, ISO/CE/FDA certificate, good quality&high performance, lower cost
* Mature global after-sales network, prompt machine maintance and problem solving
* Local support, delivery, warranty, training
* Customized models suitable for your industry
---If you are interested in our products, please contact me(limu at goldenlaser.org) for quotation and offersheet.

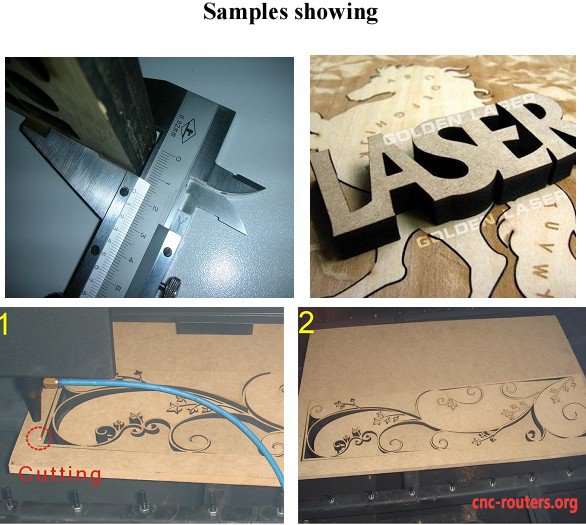

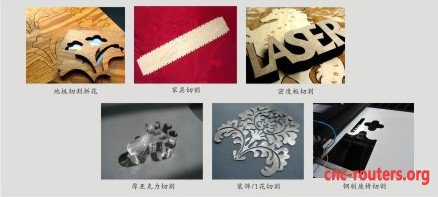

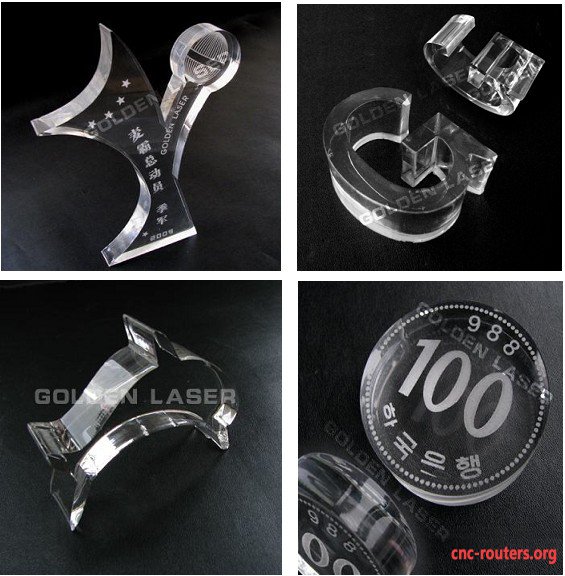

---Please kindly let us know which industry you are in and what kind of materials you want to cut or process so we can recommend suitable model to you. Product Detail Image
