Metal Fiber Laser Code Marking Machine
currently adopted the most advanced fiber-optic lasers and imported spare parts, high precision, fasten speed, stable performance, with the ability to work long continuously. Operating platform is Windows XP of software control system, both Chinese and English interface can be optional, operation is easy to learn
1) Extremely fast coding speed, up to 10000 ~ 30000 times per I hour.
2) Good Stability and Free Maintenance, No need maintenance for laser device, also not need adjust or clean the lens.
3) Long Using Time, the average using time more than 100000 hours.
4) Low Coding Cost , continuous working at every day, you can use more than 10 years without supplies.
5) Applicable to a variety of metal and nonmetal materials.
Application:
Particularly suitable for metal or plastic packaging of wine, liquor, food, beverages, pharmaceuticals, electronic products, hardware accessories and other products online flying coding, available on-line mark logistics code, password, date of production, automatic jumping code, bar code, two-dimensional code , and other digital, text, character, graphics and so on.
Technological parameter
Model No.
LD-MK4010 Metal Packing Flying Fiber Coding Machine
Max.laser average power
10W
Wavelength
1064nm
Beam quality M2
<1.5
Adjusting Q frequency
20~100 kHz
Standard marking range
100mm x 100mm
Marking depth
≤7000mm/s
Linear speed
9000mm/s
Min line width
0.008mm

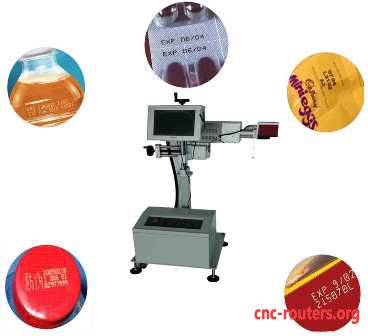

Product Detail Image
