Detailed Description

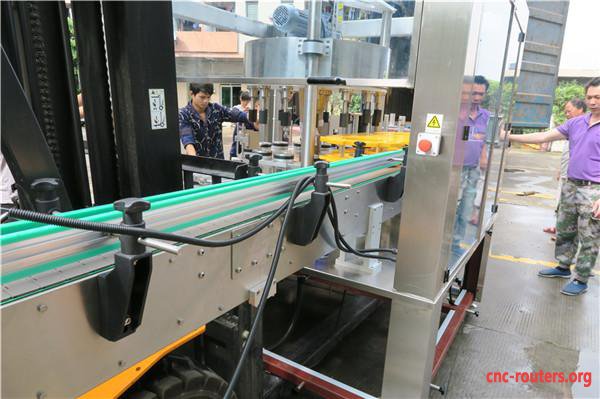

Efficient Bottle Rotary Sticker Labeling Machine Equipment PLC touch screen
Product Characteristic
1 , Machining parts material guarantee:The machine is made of high quality raw materials. The parts use high quality aluminum, steel and imported nylon.
2 , Wide range of application:It is suitable for the single/double/multi-sides of the round bottle, square bottle and irregular bottle.
3 , High positioning accuracy:Using mechanical rotating positioning, advantage of the characteristics of the bottle itself looking for anchor point, greatly improve the stick mark stability and accuracy.
4 , The labeling effect is good:The biggest characteristic of this equipment is the imitation of human labeling, completely subvert the traditional way of labeling, thoroughly solved the problem, spherical stick mark wrinkle make possible differentiated product labeling.
5 , Easy to adjust:Send the device can be adjusted 8 d, especially suitable for a bottle type of the taper, and change the different size of the product is simple and easy to adjust, need not use tools.to avoid bad labeling affect caused by machine shaking, all direction adjusting modules will be locked after the machine finish adjusting. So it will insure the production process smoothly and the labeling location consistently.
6 , Efficient production:The speed is up to 24000bottle/hour. High speed labeling fluency .It can match front and end seamless butt joint and improve production efficiency.
7 , Using famous brand spare parts.
8 , Advanced processing equipment:main parts professional factory uses in all Polytechnic high precision processing to complete, the main parts in the machining process will be used in the highest level of detection methods for quality control, in order to obtain the highest quality and highest-precision parts, reduction of machine vibration at high speeds
9 , Novel structure. Main designers have more than 10 years design experience in this field. Each component are through strict aging test.
10 , Using world first-class brand electrical accessories.
Technical Parameter
Power supply AC380V 50Hz 5.5KW
Labeling accuracy ±1mm
Label max height 195mm
Labeling capacity 50m/min
Bottle diameter hickness≥30mm Height≤500mm
Label paper core’s inner diameter 76.2mm
Label external diameter 330mm
Overall measurement L1740×W2020×H2100mm
Weight Customized
Application
1 , This machine is fully automatic rotary self-adhesive labeling machine. Suits for different industries for beer,wine,white spirit,health wine,seasoning,cosmetics,medicine,cans and others.
2 , It can highly improve the work efficiency, with the advantages of humanized design,high flexibility ,easy to operate,steady speed,clean labeling environment ,easy to repair and maintenance,strong work performance.
3 , It’s the necessary labeling machine for the company to upgrade their product and quality.
.
Advantages
1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.
2 , The production max speed is about 50m/min.Labeling accuracy is ±1mm.
3 , The machine’s Using power,dimension,Weight are customized.
4 , The machine is apply to the Daily Chemical and Food Industry.
5 , The Power supply is AC380V 50Hz 5.5KW,Label max height is 195mm.
6 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm.
7 , Label paper core’s inner diameter is 76.2mm,Label external diameter is 330mm.
