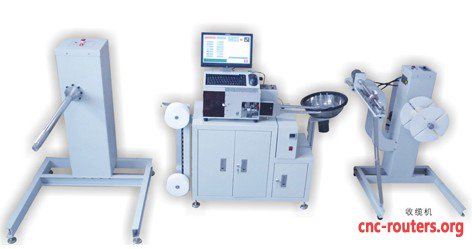

AFCM-2000 Automatic Fiber Cable Cutting Machine
Description and Features:
Automatic Opical Fiber Cutting Machine is applied for producing fiber optic patchcord, and it is a professional equipment with measuring length / cutting and winding fuctions. It could cut different indoor optical fibers into required length and wind cable into circularity.
This equipment integrates the advantages from China and oversea factory’s cutting machines, and increas an automatic feedback function for data groups. It makes the measuring accuracy impove better. It includes automatic winding and automatic cutting functions to protect the optical fiber.
Flexible for length and speed setting, High efficiency.Friendly touch screen interface, compact window, self-defined language: Chinese / English / Korea.Easy to handle, High precision, High speed, Low noise. It is the best machine for cable cutting and winding.
Place of Origin: Wuhan in China
Technical Parameters:
* Operation System: Chinese and English touch screen* Cutting Length: no more than 999 mtrs* Fiber type: dia 0.9mm to dia 7 mm, Simplex fiber, Duplex fiber and Ribbon Fiber.* Speed: 1.6 meters per second* Length Accuracy: no more than 3%* Powrer consumption: 450 Watt, 220V AC, 50/60Hz* Pressure Source: 0.4 to 0.6Mpa* Cable Carring Capacity: no more than 36 kgs* Machine Size: 2 m * 0.5 m * 1.2 m* Total Weight: 175 kgsAFCM-2000B:
