Our Main Products:
1.3axis cnc router machine: Wood cnc router;woodworking cnc router;furniture cnc router.
2.4axis cnc router machine: Do both planar and columnar working.
3.Multi head cnc router machine: Equip 2-8 heads.
4.Professional 3d cnc router machine: Equip 2-8 rotary axis.
5.ATC cnc router machine: Automatic changing tool.

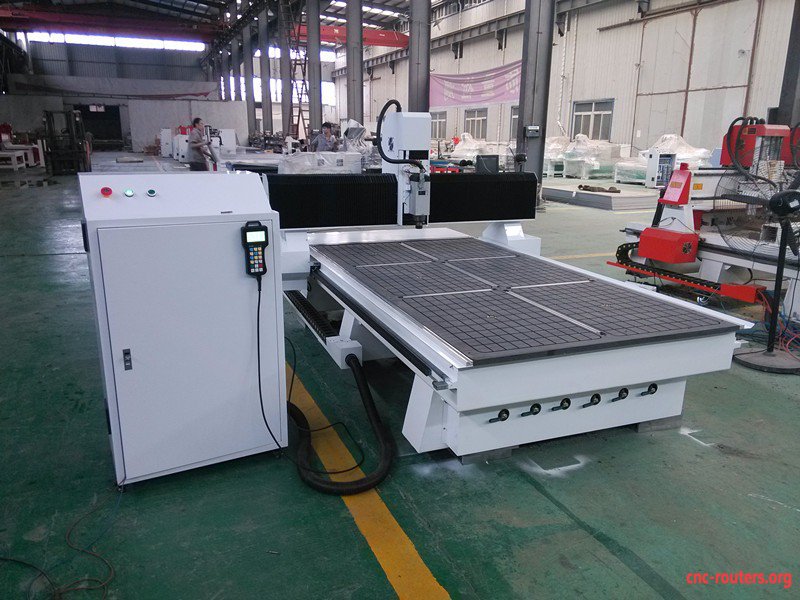

Wood Carving CNC Router Machine Advantages:
1.Heavy duty body, "T" structure.
2.HSD 3kw air cooling spindle, more powerful, longer life time with higher precision.
3.XYZ guide rail use 25mm HIWIN linear round guide rail, it is more stable and has longer life than the normal round one or hinese one.
4.High-performance driven motor to ensure the machine’s high speed and accuracy.
5.2.2kw Dust collector will provide,collecting dust when machine working.
6.Electric lubrication system,inject-oil automatic,its very convenient.
7.DSP controller system,offline operation,not need connect with computer,very easy and convenient.
8.Vacuum table with alumium T-slot, 7.5kw vacuum pump provide strong suck.
Applications Industry:
It is suitable for mass processing of solid woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Acrylic Sheets, Glass, Organic glass, Aluminum plates and other materials.
(1).Furniture Industry: They can be used to engrave Text, Pictures, Imagines on solid Wood doors, Composite gates, Cupboard doors, interior doors, sofa legs, headboards, antique furniture and other panel furniture
(2).Decoration Industry: They are applicable to engrave various decorative patterns on the surface of decorative paintings, screens, three-dimensional wave boards, and acoustic boards.
(3).Musical Instrument Industry: They are suitable to engrave decorative patterns on the head of musical instruments, or to process the semi-finished guitars. It also can make three dimensional curved surfaces.
(4).Mould Industry: They can make wood moulds, evaporated pattern casting moulds, food moulds, and other moulds.
(5).Craft Industry: They are used to engrave decorative patterns on relief craftworks, pendants, automobile accessories and other craftworks.
(6).Advertising Industry: They are applied to cut or engrave patterns on acrylic. It also can make acrylic adsorption moulds, chest cards and various label plates.
Technical Parmeters:
Model 1300*2500mm
Structure Heavy duty
Table Vacuum table with aluminum T-slot
X Y Z working size 1300*2500*200mm
X Y Z rail HIWIN Linear 25 square guide rail
X Y transmission Rack & pinion
Z transmission Ball screw
Max. speed 60m/min
Max. working speed 50m/min
Spindle Italy HSD 3kw air cooling spindle
Spindle speed 18000rpm
Collets ER20 3.175-12mm
Precision 0.01mm
Repeat reposition 0.025mm
Accuracy Fuling 3.7KW
Inverter Step motor
Motor Leadshine driver
Driver 380v 50hz
Voltage Yes
Transformer Include
Lubrication Include
Dust collector 3 axis DSP
Control system Artcam
