Detailed Description
Starting business with XINFENG WEI YE TECHEOLOGY NOW!
---Leading Manufacturer for 4G/3G Wireless Router with 13years Experience
Product Description
Why our 4G Wireless Router D923 ?
Factory
Original factory with 13years developing and producing experience.
1%
1% lower defetive rate, keep client be free from after-sale service
12
12months warranty
Free
1. Free rebranding on tracker casing based on 1000pcs order quantity
2. Free OEM and ODM service for bulk orders.
New
Designed with latest technology: 1.45" LCD Display, over-current protection etc.

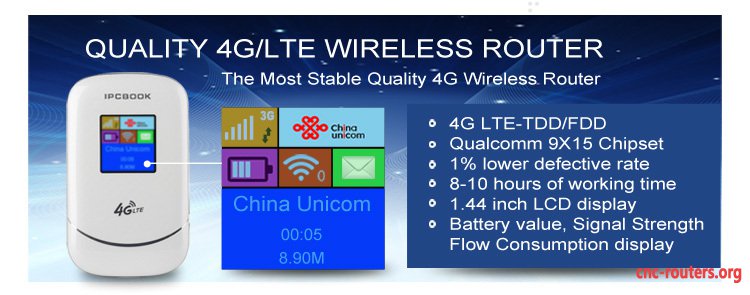

4G Wireless Router Features
- 4G LTE-TDD/FDD supported with up to 150Mbps download and 50Mbps upload speed.
- Supports up to 10devices simultaneously
- 1:45" LCD display with all useful information
- 2400mAh battery for up to 8-10 hours of working
- IEEE 802.11b/g/n
- Equipped with a micro SD cafffrd slot for up to 32GB of optoinal storage
4G Wireless Router Specification
Model D923
It is a portable and high speed internet access mode for office and home.
Zero-CDROM is convenient for user remarkably.
Chipset Qualcomm MDM9215/MDM9615
Technical Standard FDD-LTE 3GPP/3GPP2 Release9, Category3, up to 150M DL and 50Mbps UL@20MHz bandwidth
TDD-LTE 3GPP/3GPP2 Release9, Category 3, up to 68M DL and 17Mbps UL@20MHz bandwidth
TD-HSPA+ 3GPP/3GPP2 Release7, up to 4.2Mbps DL and 2.2Mbps UL
DC-HSPA+ 3GPP/3GPP2 Release8, up to 42Mbps, category 24, 5.76M bps UL
HSPA+ 3GPP/3GPP2 Release7, up to 14.4Mbps, category 10, 5.76M bps UL
HSPA 3GPP/3GPP2 Release6, up to 7.2M bps DL,category 7/8, 5.76M bps UL
UMTS 3GPP Release4, up to 384 Kbps DL and UL
EDGE 3GPP Release4, Multislot class 12, up to 237 Kbps
GPRS 3GPP Release4, Multislot class 10, up to 85.6Kbps
Frequency Band FDD-LTE B1(1920-1980MHz,2110-2170MHz) / B3(1710-1785MHz,1805-1880MHz) / B7(2500-2570MHz,2620-2690MHz)
TDD-LTE Band38(2570-2620MHz) / Band39(1880-1920MHz) / Band40(2300-2400MHz) / Band41(2496-2690MHz)
TD-SCDMA Band34(2010-2025MHz) / Band39 (1880-1920MHz)
UMTS B1(2100MHz) / B2(1900MHz) / B5(850MHz) / B8(900MHz)
GSM B2(1900MHz) / B3(1800MHz) / B5(850MHz) / B8(900MHz)
CDMA 1X/EVDO BCO (800Mhz )
Power Class LTE/TD-SCDMA/UMTS Power Class 3
GPRS 850/900 Power Class 4
EDGE 850/900/1800/1900 Power Class E2
External Interface SIM/USIM Card
Standard 6 PIN SIM card interface, compaliant with
3GPP 31.101 and 31.102
Micro USB Micro USB 2.0,USB port for charging and PC connectivity
Micro SD Card Slot Up to 32GB
Button Power Switch Yes
Wi-Fi Setting Sharing Up to 10 devices
SSID Broadcast Yes
WiFi Security WPA-PSK,WPA2-PSK,WPA/WPA2-PSK
WiFi Standard 802.11b/g/n,Up to 150Mbps
WiFi Band 2.4GHz
Setting Support
SMS/Contact Book/APN Setting/WiFi Setting/Device Setting
/Routing Setting/Firewall Setting
Battery Capability Lithium ion Battery 2400mAh
Working Time 8-10 hours
Charging Time 3-4 hours
Input/Output 5V/1000mA
Antenna Built-in 4G/3G/2G Antenna/WiFi Antenna
Security Setting Support Firewall/Website Filter/MAC/IP/Port Filter
Language English/Chinese Default English,Support Multi-Language Customization
Display LCD 1.44 inch,Instructions MiFi Status
Material Product Shell ABS+PC
Weight Product 110g
Working Temperature -10°C to 60°C
Dimensions(D*W*H) Product Size 106.2mm*65mm*16.5mm
Support System Microsoft OS Windows2000/XP/Vista/7/8
Mac OS Mac OS X 10.5 or Later
Android Android 4.2 or Later
Customization Gift Box Customization Supported
UI Customization Supported
Package 4G MiFi Yes
Micro USB Cable Yes
User Manual Yes
Software Info
OS Win7, Windows XP, Vista, Mac OS
Language Chinese&English Multi Languages supported
Sharing Up to 10 sharings
Settings Supported
SMS Supported
Contact Book Supported
APN Setting Supported
WIFI Settings Supported
Device Settings Supported
Routing Settings Supported
Firewall Settings Supported
Certification CE Granted Up to customer
Else
Size 106.2mm*65mm*16.5mm For reference,to be decided
Weight 110g
Standby Time Up to 50 Hours Finally decided by Battery
Working Time Up to 6 Hours Finally decided by Battery
