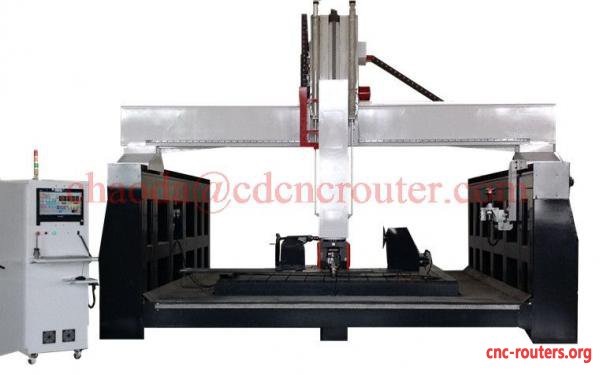

HSD 5-axis cnc router for 3d sculpture carving
HSD 5-axis cnc router for 3d sculpture carving
Applicable material:
2D engraving, 3D engraving, line engraving, cutting, edge inversing, drillingon Artificialstone, Marble,
Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone,Travertine, Quartzite,
Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel,aluminum block, copper etc.
Technical Parameters:
Model
JC-5AXIS
Working Area (X*Y*Z*C*A)
1500*3000*1000mm*245degree*120degree
Tool magazine
8 drum auto tools changer
Max Moving Speed
50-60m/min
Max Engraving Speed
30-25m/min
Positioning Accuracy
0.05mm
Hold mode
T-slot with Clamps
Spindle Speed
0-24000rpm/min
Spindle Power
ATC 10KW Italy HSD spindle
Tool Diameter
3.175-20
Collect Size
ER32
Transmission
X,Y Axis High Precision Rack Gears, Z Axis Ball Screw
X,Y,Z Guide rail
Linear Square Rail from Taiwan
Control System
5 axis OSAI control system
Driving Motor
Japan YASKAWA Servo Motor & Driver
Software
ArtCam&PowerMill
Inverter
Taiwan Delta inverter
Command
G Code (plt, mmg, uoo, bmp)
Voltage
AC380V/50-60Hz ,3PH or others
Running environment
Temperature: 0-45; Relative humidity:30%-75%
Certificate
CE , CE testreport, ISO. (CO is available if needed)
Option Spare parts
Samples Photo:
Testing and Training:
Packages and Loading:
CHAODA Factory:
Welcome your inquiry:
Product Tags: 5-axis cnc router 5 axis cnc machine 3d cnc sculpture cnc router
