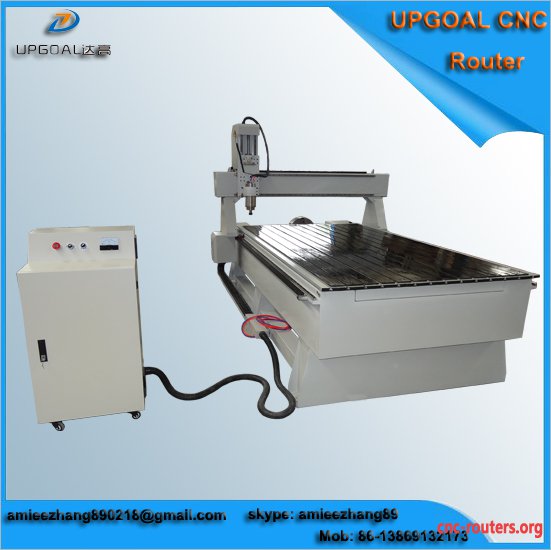

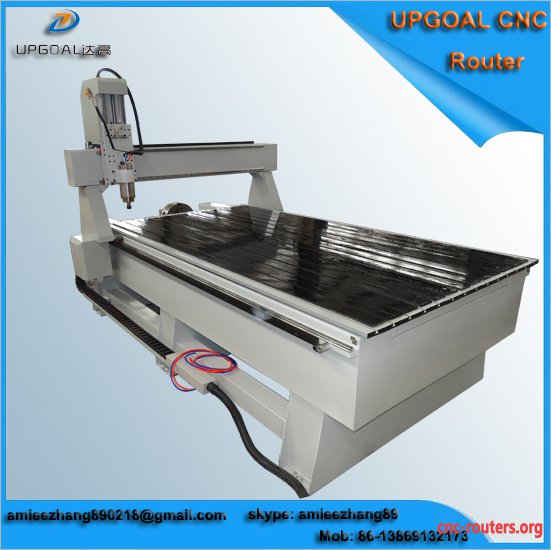

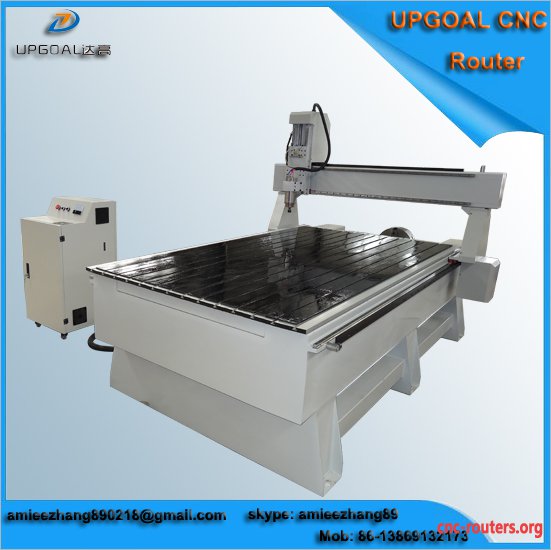

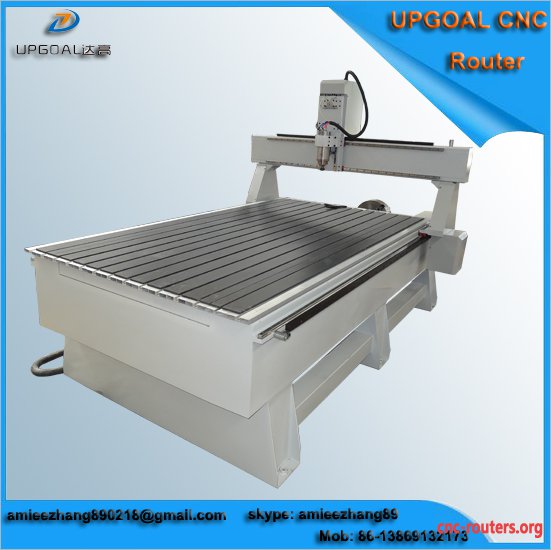

4 axis 1325 Wood CNC Router with Underlying Dia 300mm Rotary

4 axis 1325 Wood CNC Router with Underlying Dia 300mm Rotary Axis DSP offline Control

Applicable Industries

Woodworking industry: cupboard door, craft wooden door, solid wood door, panel engraving and cutting, stereo wave board processing, panel furniture, painting door, paint-free door, screen, craft windows working, furniture milling and engraving, wooden musical instrument 3D engraving

Other industry

Advertising industry: advertising signs, acrylic cutting, logo making, plastic molding, a variety of advertising and decorative products making

Applicable Materials

color board, plastic plate, luminous panel, organic glass, aluminum, copper, sliver, gold, iron, stainless steel and other materials.

1. The machine body structure adopt high quality steel pipe welding, with geometry frame structure, strong bearing strength, processing jitter low.

2. Machine 3 axis adopt Taiwan linear square guide rail, diameter 20mm, double class four row ball slider, operating smoothly, high accuracy, durable.

3. XY axis adopt super-modulus gear pinion with high speed and accuracy. At the same time, Z axis use imported ball screw, high precision,lower knives accurately.

4. Adopt high precision&speed stepper motor and driver for XYZ axis. Two motors for Y axis make machine operating more sable and higher accuracy.

5. 3.2kw water cooling spindle , more powerful and low noise.

6. DSP offline control system, when working, no need computer, just save files into USB disk, then plug into DSP, let DSP control cnc router working,  more convenient.

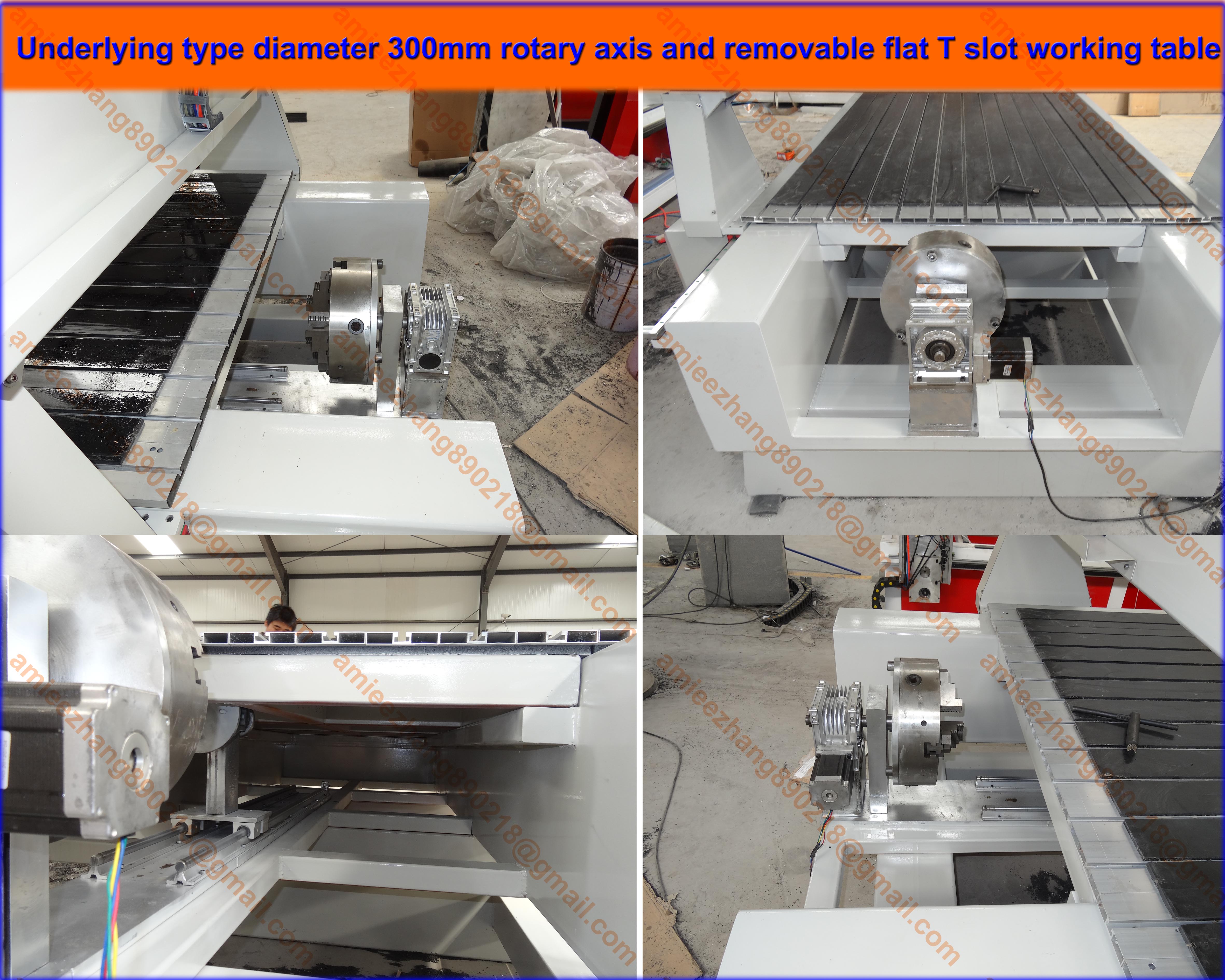

7. Underlying 4th axis rotary axis and removable T slot flat working table, saving labor and improving efficient.

8. Continuing working after the break point/power failure, lower the rejection rate.

9. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.

Effective working area

1300(X)mm*2500(Y)mm*200(Z)mm

Max.thickness of the materials

≤200mm(the distance between Z-axis and the bottom of the working station)

Materials

Steel pipe welded machine holder bed, cast iron gantry

Working table

Aircraft aluminium T slot, removable type

Guide rail

Linear square guide rail ( Hiwin, Taiwan, diameter 20mm)

Transmission

Oblique rack &pinion for X Y -axis,

ball screw(TBI,#2505) for Z-axis

Driving mode

Stepper motor ( XY Z-axis: 86BYGH450B, 5.5N.M) and

Stepper driver( MA860H, Leadshine)

Spindle motor

3.2 kw water cooling, 4 pieces

Spindle collets type

ER 20

Suitable tools diameter

3.175mm, 4mm, 6mm, 8mm, 10mm, 12.7mm

Inverter

Sunfar, 3.7kw

Voltage

AC 220V, 50/60Hz ,single phase or

AC 380V, 50/60Hz, three phases

Spindle speed

0-24000rpm/min

Empty traveling speed

0-25000mm/min

Engraving speed

0-12000mm/min

Machine accuracy

0.03mm

Diagonal error

0.3mm

Resetting accuracy

0.03mm

Control system

4th axis

Rotary axis, diameter 300mm, length 120mm

Motor wire

High soft specially for Numerical Control( 4*0.75)

Spindle wire

Shielding high soft (3*1.5)

Suitable software

Artcam, Type3, Ucancam V9,etc

Software when delivery

Artcam 2008

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity

30%-75%

Lubrication system

Semi-auto

Auto tool calibration

For Z-axis

Tools

15 pieces

Accessories
