Cylinder 4 axis wood CNC router with 4 spindles SC2025CX4
Suitable for crafts carving, furniture, solid wood door, decoration, tea tray, bamboo, mahogany pen holder, Roman column, etc. The main material is MDF, solid wood panels, pear, mahogany plate material.
Features
◆Advanced structure design with hot-working treatment make performance stably and durably.
◆X.Y.Z adopting the imported ball screw, rigorous testing by the laser interferometer to ensure processing accuracy.
◆High-power drive motor fit high-performance Micro-stepping dirver make sure the machine continuous normal operation in long time.
◆Software Compatibility: Compatible Type3/Casmate/Artcam / Wentai / golden eagle etc.
Specification
Size
Working area
2000(X)x2500(Y)x150(Z)mm
Table size
2000x3000mm
Max diameter
450mm
Weight
1200kgs
Accuracy
Positional accuracy
±0.03/300mm
Repeatability
±0.05
Spindle motor
Power
2200Wx4pcs water-cooled
NO. of revolution
5000-24000rpm
Motor
Stepper
Traverse system
Rapid Traverse
14000mm/min
Inverter
2200Wx4pcs
Control parts
Controller
Ncstudio
Software
Type3
Format
G code HPGL
Tool diameter
3.175-12.7mm
Power supply
380V/50HZ

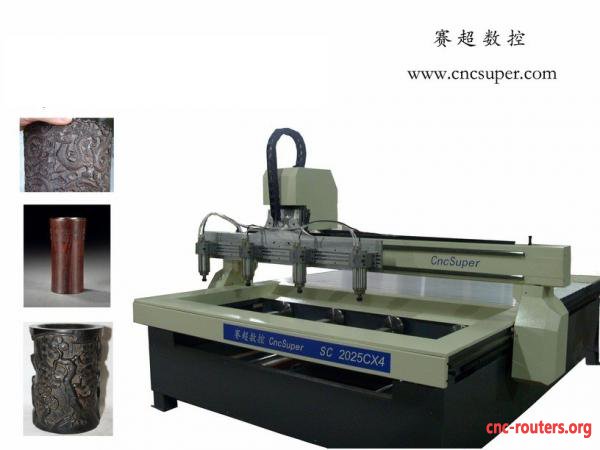

Cylinder 4 axis wood CNC router with 4 spindles SC2025CX4 images
Super Machinery Co., Ltd.
Super Machinery CO.,Ltd. is specializes in producing series of CNC
gantry machining centers, CNC advertising engraving machine,
woodworking engraving machine, CNC stone engraving machine, laser
cutting machine, CNC polishing machine, 3D scanner, etc. To provide
customers with professional CNC engraving solutions.
SUPER means exceed customer's requirments, and always strive to
surpass customer's expectations. We unceasingly renew the product
technology for concept, guided by high-efficiency, safty and
convenience of customers, make "SUPER" CNC to become the good and
reliable assistant for all clients.
Over the years, SUPER MACHINERY sales high quality automation
equipments to various industries through differnet distribution
channels.SUPER CNC CENTER is based on the guidance of technology
around the world to set up offices, to provide all customers the
complete sales, demonstration, training, service and technical
support.
