1325 3 axis cnc router machines for sale
Functions and features:
1.imported linear square rails can make sure machine loading capacity, running balance, high precision, long lifetime, Imported high precision ball screw, the machine can work with high precision.
2.Using the world’s leading SYNTEC control system, and adopting the breakpoint memory, make sure the machine can continue work under the situation of accident (break tool) or work the next day,

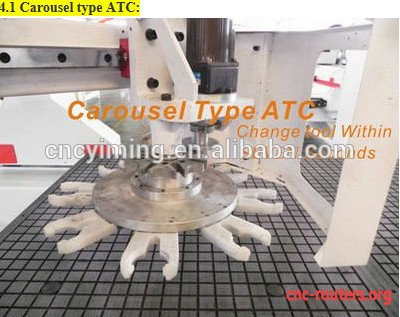

3.Bamboohat ATC system, tool changer capacity is 8 pieces, tool changing time is just need 8 seconds.
4.High-speed driving in Japan YASKAWA/PANASONIC servo motors and drives, to make high –speed operation, with the Italian high-speed automatic tool change spindle carving more improved.
5.A variety of models are available to choose.
Applicable Industry and materials:
1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, antibate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
Performance Index:
1
Stroke range
X axis
1300mm/2000mm
Y axis
2500mm/3000mm/4000mm
Z axis
200mm/300mm
2
Process precision
±0.05mm
3
Reposition precision
±0.05mm
4

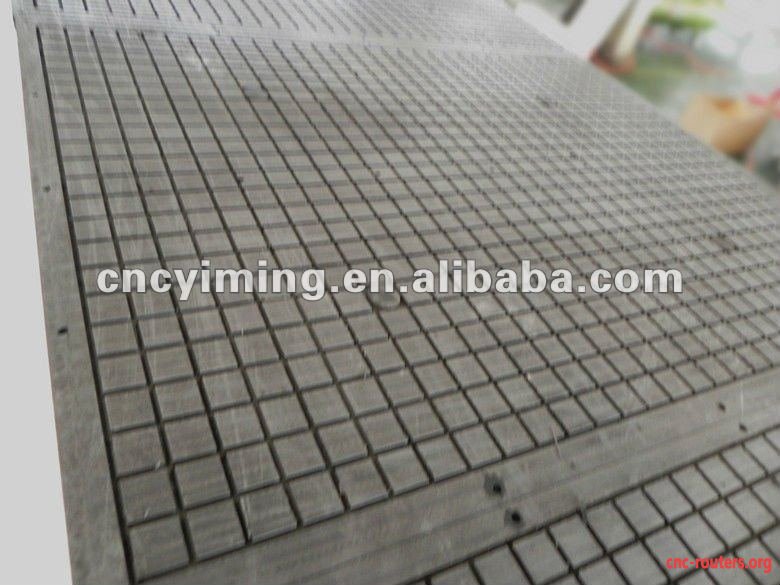

Table structure
Vacuum suction(bar suction optional)
5
X,y,z structure
X, y rack, z screw
6
Idle speed
≥45000mm/min
7
Working speed
≥20000mm/min
8

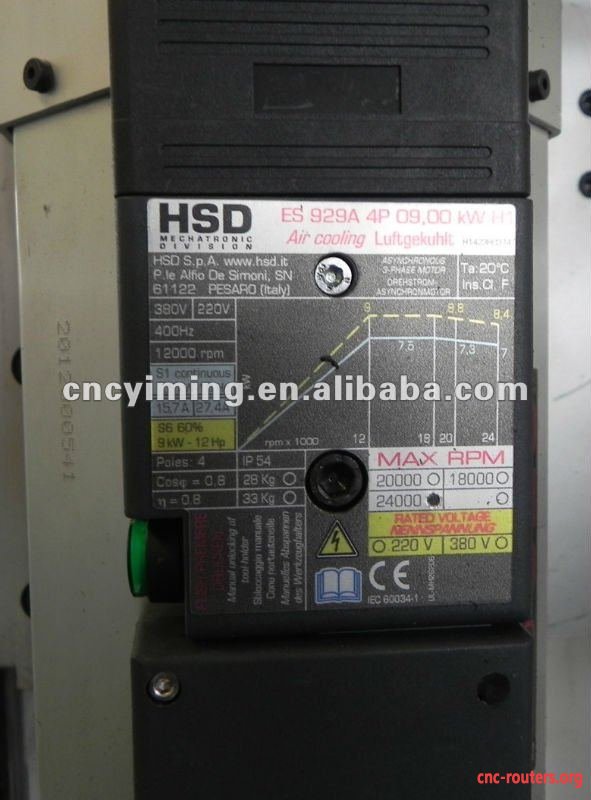

Spindle rate
9.0kw
9
Spindle speed
0-24000rpm/min
10
Motor type
Servo
11
Command code
G code
12
Working voltage
AC380V/50HZ
13
Operating system
Taiwan SYNTEC(OSAI optional)
AfterSale Service
1YiMing will provide the user a CD to study the machine installation and commissioning
2 YiMing’s technicists can give user online guide.
3 The user can by call or email YiMing any problems at any time.
4 After-sales service
One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
Samples:
Details pictures:
Packaging: free-fumigation wooden case
