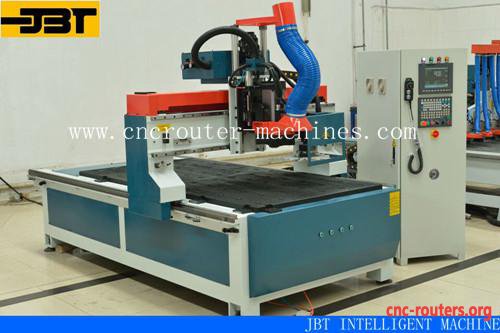

HSD Italy High Speed Spindle 3 Axis CNC Router For Wooden Door Making
HSD Italy High Speed Spindle 3 Axis CNC Router For Wooden Door Making
Performance features
1. Integral welding body,high inflexibility structure
design,material stress analysis and forming by heat treatment,avoid
deformation.
2. Transmission part adopts high precision helical rack,THK linear
rail from Japan,supplement with Japan Yaskawa servo system
and Taiwan professional deceleration device,ensure machine running
smoothly in high speed,high precision,low noise.
3. Equipped with professional vacuum system,adopt integral
adsorption base with the high strength engineering plastics
surface,onetime forming,adopt high power professional vacuum
pump,strong adsorption capacity.
4. Imported high power spindle from Italy ,low sway in axial
,strong cutting force,long lifetime,low noise,with imported Geneva
type library of 8pcs tool,high efficiency.
5. Industrial control system ,professional electronic parts,perfect
function,stable performance,strong compatibility of software
.
Application:
Applicable to process kinds of boards,such as solid
wood,acrylic,PVC board,shaving board,fireproof wood etc.Widely used
in complex processing on door,cupboard,audio wood shell etc
Standard Configuration:
X axis
1300mm, Ball screw motion
Y axis
2500mm, Diagonal rack motion
Z axis
200mm, Ball screw motion
Working speed
15m/min
Table fix
vacuum absorbtion
Rail
Taiwan Hiwin30
Spindle
9.0kw Italy HSD air cooling
Spindle speed
24000r/min
Motor
Japan Yaskawa servo motor
Motor power
1.3kw
Operation system
Taiwan Syntec
Process precision
0.05mm
Automatic tool changer
Yes
Automatic lubrication system
Yes
Name brand component
The automatic tool changing system which contains eight pieces of
cutting tools is controlled by CNC ( Syntec Control system). The
tools can be changed very quickly and reliably.
High speed Italy HSD spindle that can do mass production work,
highly save the time and improve the efficiency in working.
The Max. Processing speed can reach 20000mm/min, Max. traveling
speed can reach 35000mm/min.
Our Advantage
1: All the component come from name brand:Germany WMH Herion gear; France
Schneider electric component; Taiwan Hiwin25,30,35 rail and ball screw.and so on
2: Select best walled steel tube for the machine,providing a rigid structure to dampen vibration and
assures long-term accuracy.
3: Three times inspect and test procedure before shipping.assures best performance to avoid “after-sale service”
Factory picture
Product Tags: cnc wood carving machine Large Cnc Router

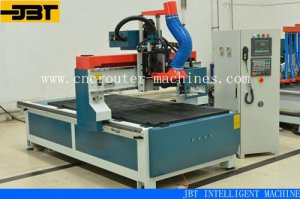

HSD Italy High Speed Spindle 3 Axis CNC Router For Wooden Door Making images
JBT INTELLIGENT MACHINE LIMITED
JBT design and manufactures 3axis CNC and 5axis CNC routers and large format CNC machining centers. With 20 years of innovation, custom engineering and industry experience as an original equipment manufacturer(OEM).
JBTserves almost every industry, especially aerospace, automotive, JBT CNC routers are typically used on materials such as composites,aluminum,plastics,wood and foams
We manufacture industry-quality CNC routers-addressing the need in the market for a cost-effective,industrial CNC machining solution without sacrificing on quality or reliability.
Complete in-house steel fabrication and machine assembly assures that each machine is robust, precise and high performing. For custom sizes and additional options, please contact the JBT factory.
