wood cnc router with rotary KC1325RH cnc milling machine 4 axis with the spindle can rotary 180 degree
1.The Introduction of wood cnc router with rotary KC1325RH cnc milling machine 4 axis with the spindle can rotary 180 degree:
With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration, and it is qualified for mass- producing of furniture with the Vacuum holding way and dust collector.

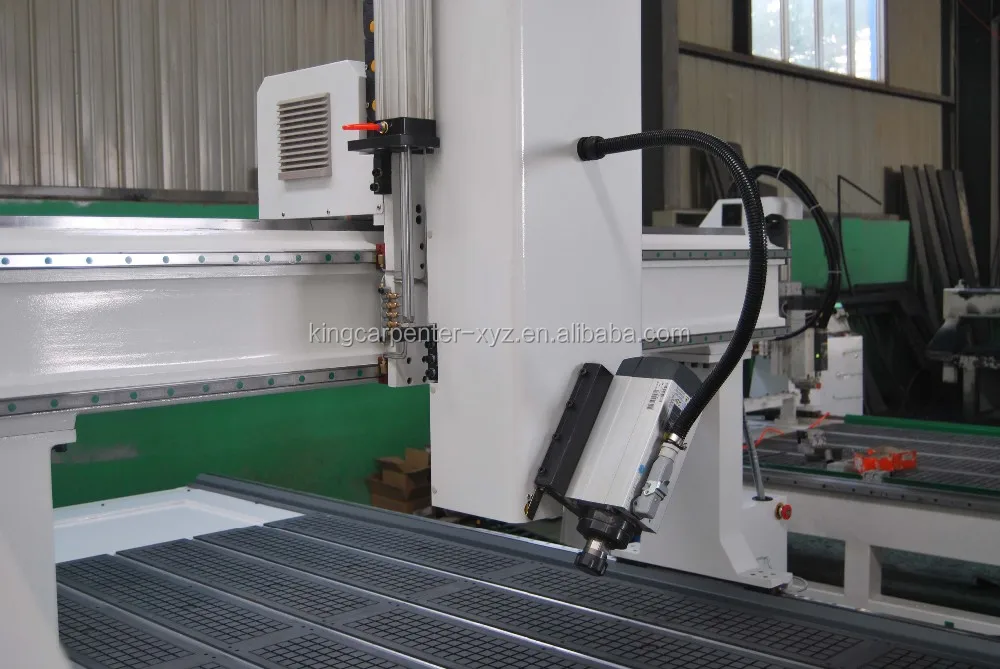

We use top quality components for the machine, such as 4.5KW Italy HSD air cooling spindle, and the spindle can rotate +/-90 degree, Delta Inverter, Vacuum and T-slot Combined table , Hiwin linear, Syntec control system and so on, to keep the machine in the best condition even after working for many years.
2.The Parameter of wood cnc router with rotary KC1325RH cnc milling machine 4 axis with the spindle can rotary 180 degree:
Number
Description
Parameter
1
X,Y,Z Working Area
1300x2500x400mm±90degree
2
Table Size
1450×2940mm
3
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
4
X,Y,Z Repositioning Accuracy:
±0.03mm
5
Table Surface
Vacuum and T-slot Combined (Option: T-slot Table)
6
Frame
Big Steel Tube Structure
7
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
8
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
9
Max. Power Consumption
(Without Spindle) 4.5Kw
10
Max. Rapid Travel Rate
40000mm/min
11
Max. Working Speed
30000mm/min
12
Spindle Power
4.5KW Italian HSD Air Cooling Spindle
13
Spindle Speed
0-18000RPM
14
Drive Motors
850W Yaskawa Motors
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V))
16
Command Language
G Code
17
Operating System
Syntec Control System
18
Computer Interface
Ethernet
19
Flash Memory
512M
20
Collet
ER32
21
X,Y Resolution
<0.03mm
22
Software Compatibility
Type3/UcancameV9 software (Option: Artcam software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
3300X2100X2300mm
26
N.W.
1750KG
27
G.W.
2150KG

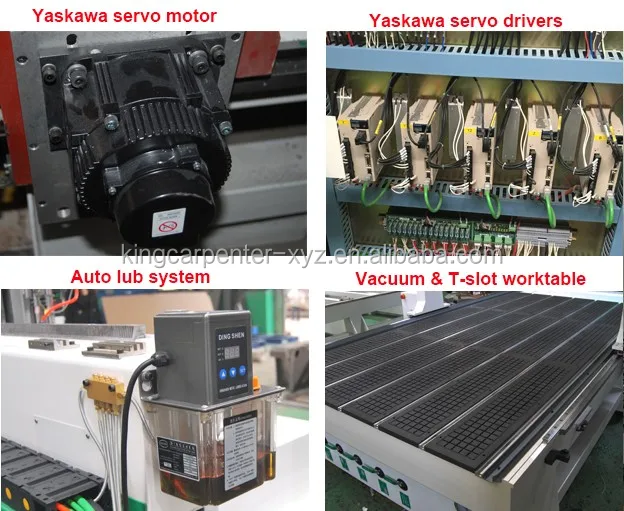

3.The Parts of wood cnc router with rotary KC1325RH cnc milling machine 4 axis with the spindle can rotary 180 degree:
4.The Samples for your reference of wood cnc router with rotary KC1325RH cnc milling machine 4 axis with the spindle can rotary 180 degree:
