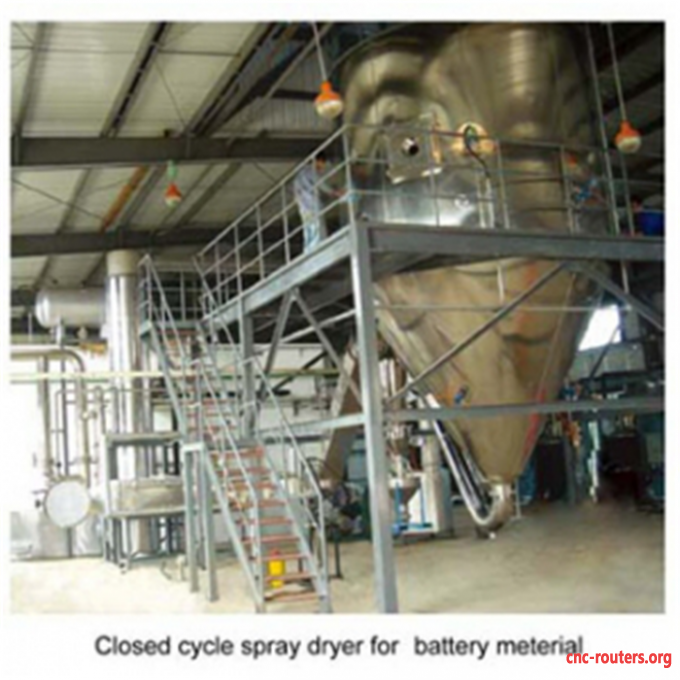

BYP Series Closed cycle spray dryer
General description
This plant works in a closed environment, which needs to be dried in an inert gas atmosphere, generally filled with nitrogen. The closed circulation spray drying system is mainly used for products containing alcohol and flammable and explosive solvents in the slurry, or products which are easily oxidized and cannot be exposed in the air. By filling inert gas such as nitrogen, it can prevent the product from contact with air. The product produced by this plant has good consistency and good fluidity, and can produce spherical materials. Thus the plant is more suitable for high-precision ceramics (such as tungsten carbide, silicon nitride, and nano-ceramics), cemented carbide such as tungsten carbide powder, and pharmaceutical intermediates and etc..
Product details
Material:SUS316/SUS304/ CARBON STEEL ,ETCHeating Source:Steam / Electrical / Natural Gas / Diesel / Etc.
Capacity:10-10000kg Per HourWater Evaporation:5-5000kg Per Hour
Temp:120-600'CDrying pattern:Continuous Drying
Document:FAT/ IQ / OQ / PQCertificate:CE / UL /CU-TR
Control:HMI & BUTTONAtomizing mode:Rotary atomizer
High Light:Food dryer machine, spray drying equipment
Technical parameters
ItemBYP-8BYP-12BYP-16BYP-20BYP-25BYP-30BYP-35
Evaporation of ethanol4kg/h8kg/h11kg/h19kg/h28kg/h41kg/h55kg/h
Drying chamber sizeΦ800Φ1200Φ1600Φ2000Φ2500Φ3000Φ3500
Affiliated FacilitiesManholes, observation windows/sight glass, lighting windows
AtomizerWH-50WH-65WH-65WH-65WH-84WH-120WH-120
(rpm)Rotational Speed (rpm)10000~360007000~300007000~300007000~300007000~250007000~216007000~21600
Product recoverySingle or two point recovery
Feed pump capacity6L/h15L/h20L/h30L/h40L/h80L/h120L/h
Heating sourceElectrical heaterthermal oil/heat medium oil(or Electrical heater )
Electric heater power6.5KW15KW26KW30KW45KW60KW84KW
Maximum drying air temperature200℃
Dry powder yield
≥95%
Remaining solvent
≤2%
Oxygen content≤500ppm
Explosion-proof grade of electric components
EXDIIBT4
System conditionpositive pressure
Accessory deviceCirculation fan, cyclone separator, bag filter, solvent recovery device
Instrument controlHot air temperature numerical control instrument, temperature record, differential pressure gauge used on cyclone separator and bag filter, pressure gauge in tower, etc.
Safety equipmentOxygen concentration detection instrument, pressure switch, system pressure automatic adjustment system
Installed power12KW26KW33KW45KW60KW90KW120KW
Notes:
⒈The equipment of the above specifications is suitable for the research and development and spray granulation for a small amount of products, small batch production or large-scale production and etc.;
⒉The evaporation of ethanol is based on the hot air inlet temperature of 140 ℃ and outlet temperature of 70 ℃.

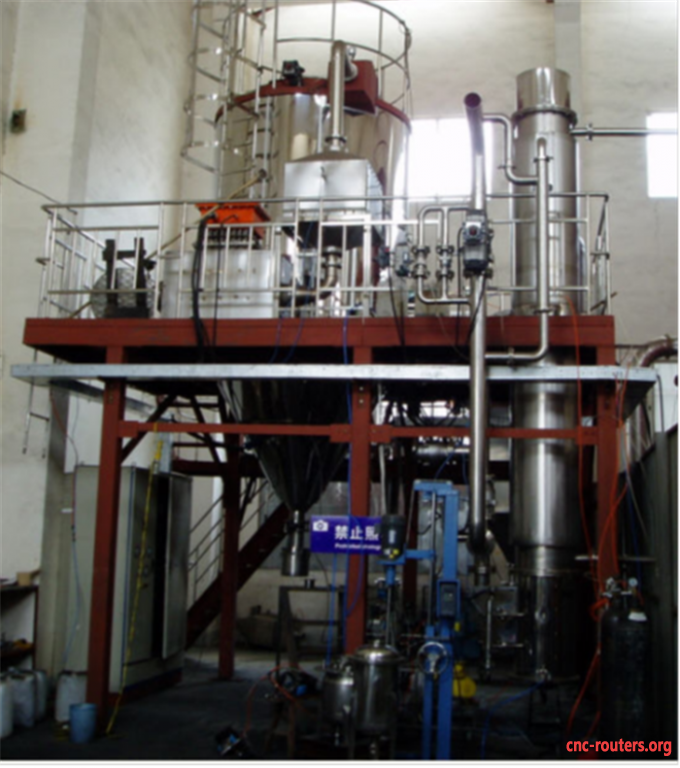

Model BYP-20 Pilot closed-cycle centrifugal spray dryer

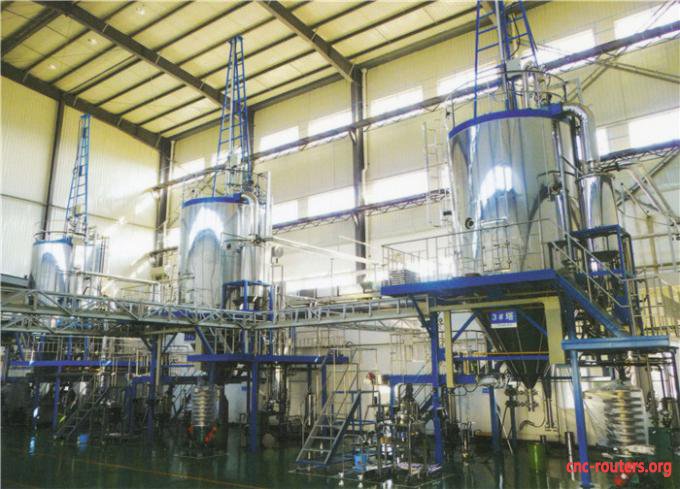

Commercial size Model BYP-30 closed-cycle centrifugal spray dryer
Application
For the sealed-circulation centrifugal spray drying machine , it is suitable for drying the solution, emulsion, suspending liquid and pasty liquid containing organic solvents, volatile poisonous and harmful gas, material which is easily oxidized and afraid of light and needs to be solvent recovery . It not only inherits all the advantages of centrifugal spray drier , but also there is no powder flying outside when drying operation . It can achieve 100% material collecting rate. Through the solvent recovery system ,the collected solvent through secondary processing , it can be recycled, which greatly reduces the production cost. Favored by the majority of users, which is widely used in the pharmaceutical, chemical, food and other industries drying operation.
Definition of closed-cycle spray drying
Closed cycle spray dryer in the drying chamber will be sealed into the mist droplets dispersed solid to liquid and hot medium (nitrogen N2) was dried droplet method of powder products. Atomized by rotary atomizer or a nozzle atomizer to achieve, droplet drying can be adjusted by the temperature or the flow of heat medium to be controlled, evaporation of the solvent to be recovered through the condensation unit, after "removal" and full " dewetting "of the media were highly efficient filters and returned to heat exchanger, and finally recycled into the drying system.
