Product DescriptionUV Resistant LED Linear Strip Light
OUTDOOR WALL LIGHT RGB LINEAR LIGHT EXTERIOR WALL BUILDING WATERPROOF OUTDOOR LINE LIGHT
Where applicable/product features

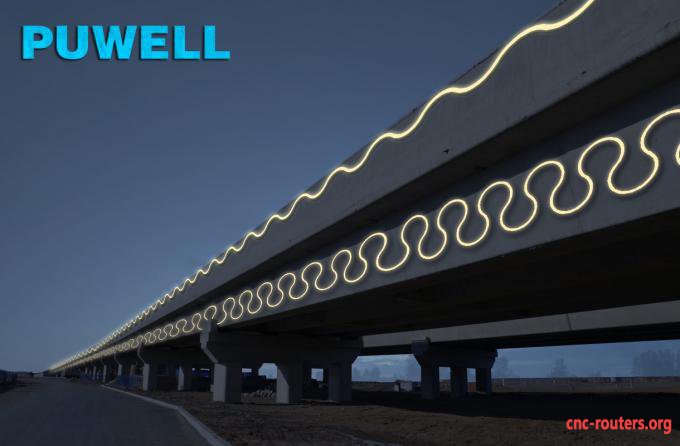

LED linear lamps are widely used in outdoor buildings, Bridges, ancient architecture floodlights,
The sealing ring is made of imported anti-aging silicone rubber, designed for convective heat dissipation.
Waterproof structure, easy to install, dimming RGB, suitable for environment -35℃~ +55℃, service life & GT;35000h
Surface treatment: mechanical and chemical anticorrosion treatment for lamp outer parts, bracket parts
Uv-proof polyester powder, waterproof grade IP65
Model
DMX RGB Strip Light
RGB Strip Light(Qutdoor)
LED RGB Linear Light
Date
authenticationCE ROHS FCC CCC
Fitting Code
Project
Applied position
RGB Strip Light(Qutdoor)
LED RGB Linear Light
Light source parametersProduct introduction
Light source□ 2835 □ 3535 ■ 5050
1,1. Seamless connection between luminaires and luminaires in the true sense of seamless docking can not see any gap within one meter

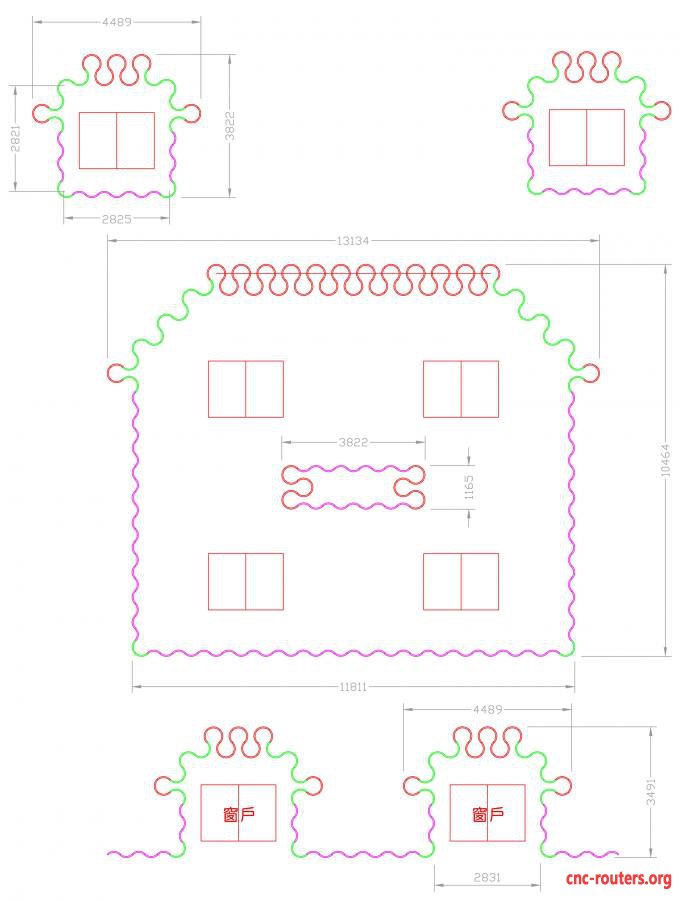

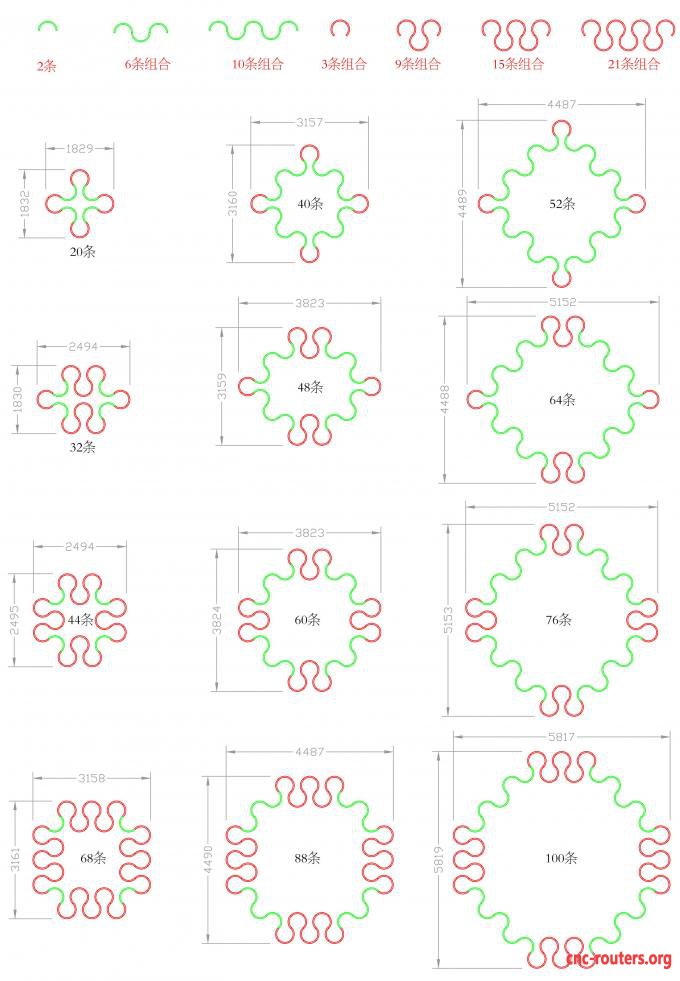

2,2. Lamps and lanterns can be spliced into various shapes. They can be spliced into circle, wave shape, car shape, house shape, flower shape, etc,
3,3. The PC cover will not turn yellow under the impact of outdoor ultraviolet and rain for five years
4,There are four kinds of installation methods
Led light source□ CREE ■ EPISTAR □ OSRAM
Watts■ 6W ■ 9W □ 12W
Color Tempreture
□ 2200k □ 2700k ■3000k ■4000k
□ 5000k □ 6000k □ RGB ■ RGBW
Light effect100lm/w
Voltage■ DC24V □ DC48V
Color toleranceSDCM≤5
Cri (ra>)≥80Ra R9＜0
Lamps and electrical appliancesLuminaire size / light distribution curve
Beam angle□ 120° ■ 270°
LINEAR LED PENDANTS
EERIE LINEAR PENDANT Hotel lighting line lamp
COMMERCIAL-GRADE LED PENDANT LIGHT Hotel lighting line lamp
Shell materialLamp bodyAviation 6063 aluminum
Bracket304 stainless steel
Lampshade
German Bayer PC cover
Milky white, transparent, black, customized according to curtain wall
parts304 stainless steel
wire rod
■ Rubber material
■2*1² □ 2*1²+3*0.3²
Color
Aluminum natural color, sand gray, marble, gray
, black, customized color according to curtain wall
control mode□ OFF/OPEN ■ DMX512
Gray scale■ 255 □ 65536
PIXELS□ 无 ■ 4 pixels □ 8 pixels

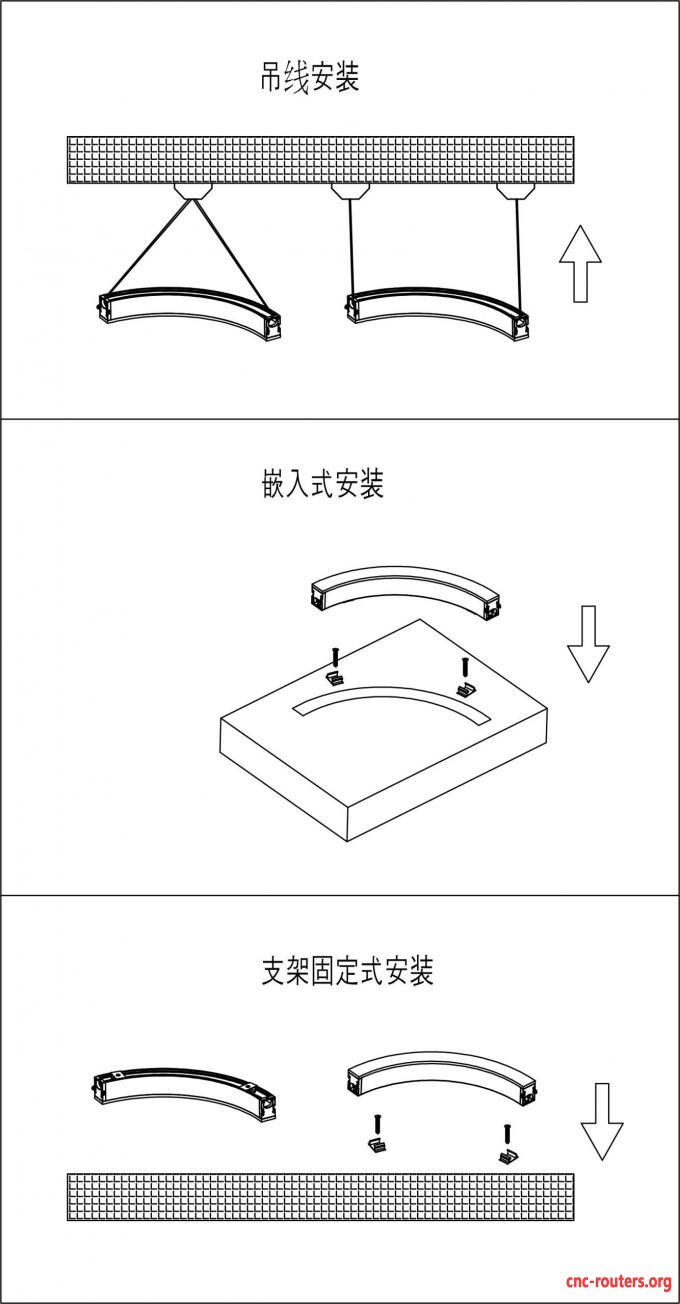

INSTALLATION MODE
DIMENSIONAL DRAWING

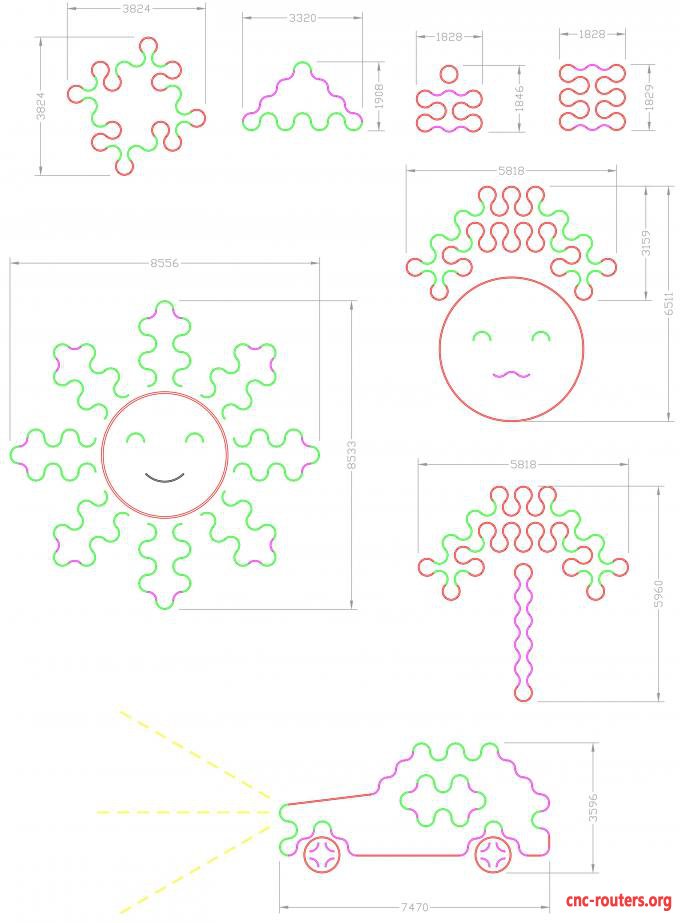

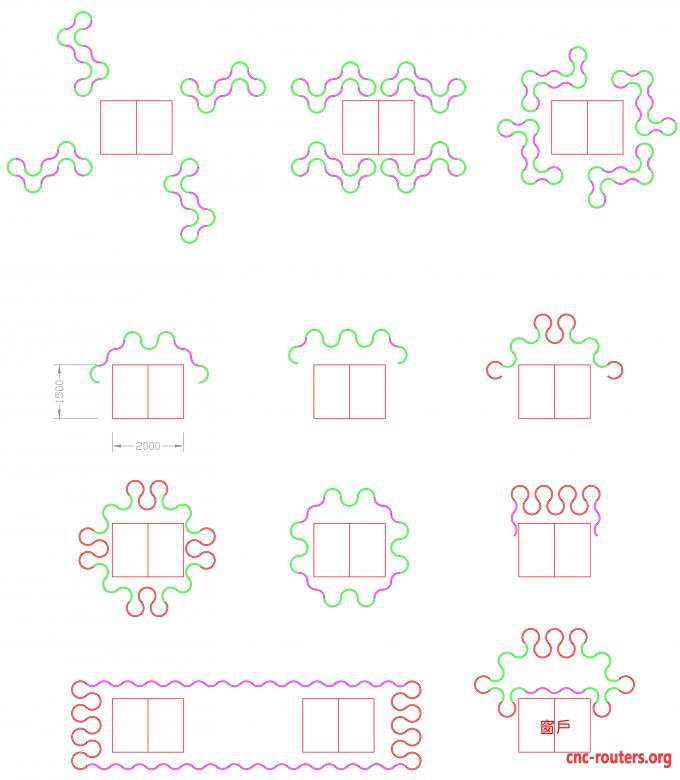

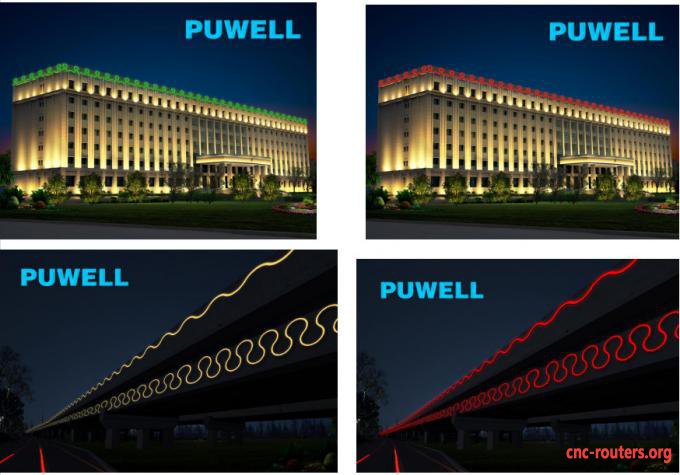

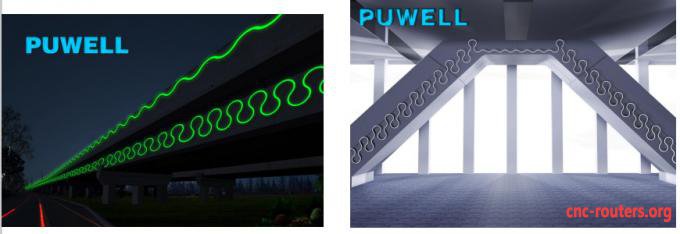

Design sketch

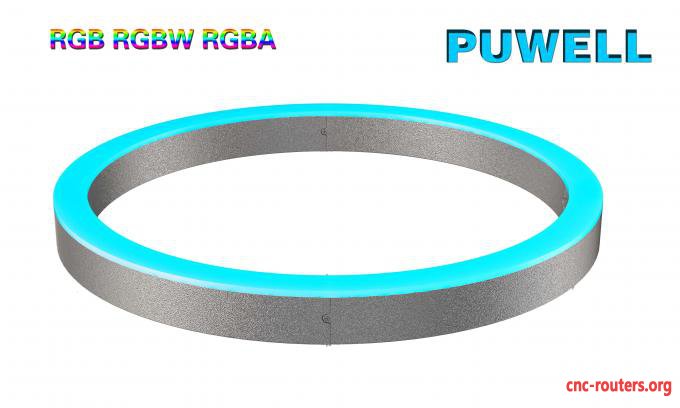

COLOR AVAILABLE

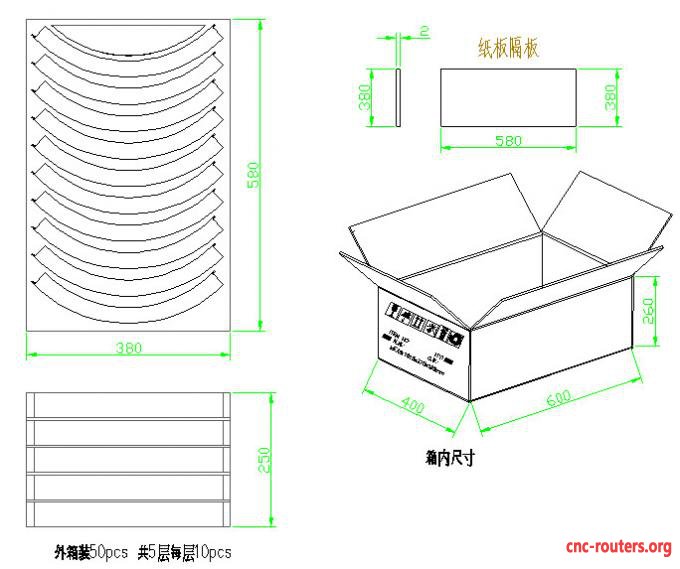

Packing size
1. Outer box size: 600 * 400 *260
2. 2. Quantity of lamps: 50pcs, 10in each floor, 5 floors in total.
3. Overall weight: kg single lamp weight: kg

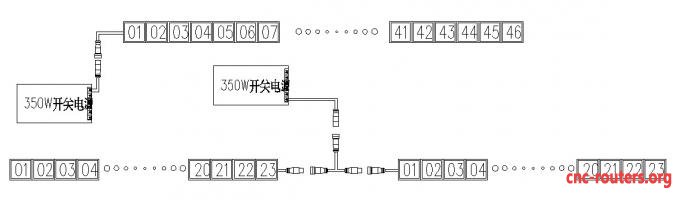

Wiring mode of normally on lamps
1. Using 350W switching power supply, 46 lamps can be connected.
2. Using 350W switching power supply, the middle connection, left and right side can connect23 lamps
3. The intermediate wiring can use 600W drive to connect two ports, each port can connect 42 lamps
4. In case of sufficient power supply, the lamp can be connected with 50 lamps

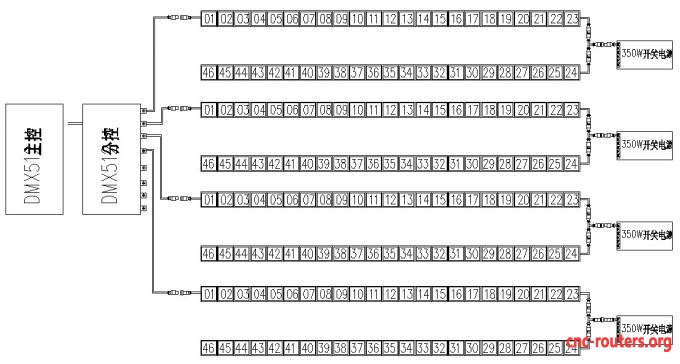

DMX512控制
