Panasonic SMT Assembly Line

Panasonic SMT Assembly Line:Product Detail Company Info Quick Detail Place of Origin China [CN] Brand Name BISMT Model Number Panasonic line HS-CODE 8486-20 Package nbsp; Automatic SMT Assembly line, this full automatic SMT assembly line with 3 setNPM-W2 pick and place machine, sui...

Stage Lighting 638nm 100mW Red Line Laser Module

LED Production Line

3D In line SPI www.bismt.com

Please click on the button Know more to find out the real product information.

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

BISMT

Model Number

Panasonic line

HS-CODE

8486-20

Package & Delivery Lead Time

Package

vacuum package

Delivery Lead Time

30 days

Detailed Description

Panasonic SMT Assembly Line

Panasonic Assembly Line

Specifications:

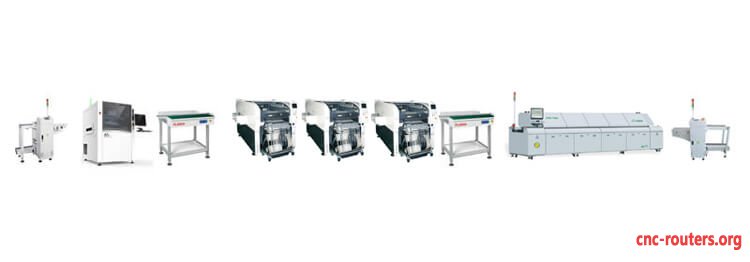

Automatic SMT Assembly line, this full automatic SMT assembly line with 3 set NPM-W2 pick and place machine, suitable for High output PCB production, like consumer proudcts PCB, TV PCB and other middle size PCB with daily output 10000pcs.

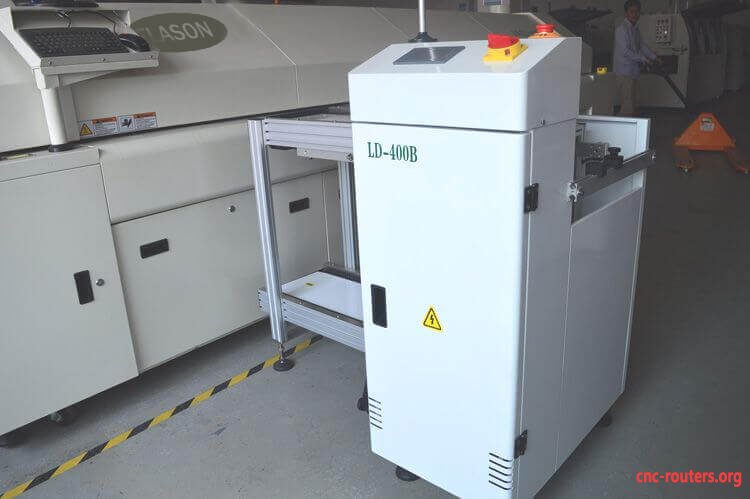

1. PCB loader

Micro computer controlled component ensures machine’s stable and reliable running.Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.Multiple sound and light alarming functionsUse standard magazines, good compatibility, load with 3 magazines at one time.Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statisticOptional SMEMA port for communication between machines.

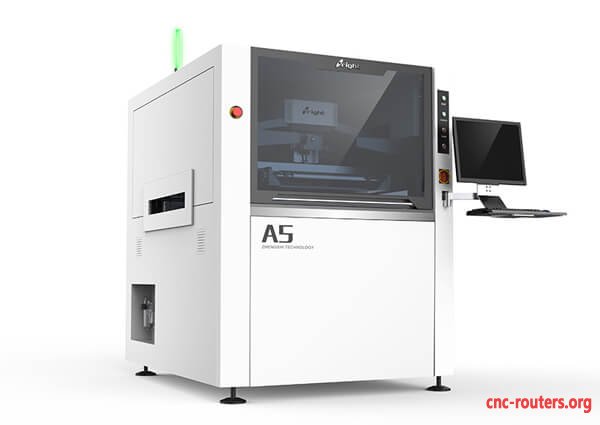

2. Automatic smt stencil printer A5

A Seriel SMT Stencil printer is high accuracy and high stability of the fully automatic printing machine vision,We followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.Specification ：A Series High Precision Automatic solder paste printer designed for high precisionsteel mesh printing or stencil printing in SMT industry.Printing PCB size：50mm x 50mm ~1200mm x 800mm;PCB thickness: 0.4mm ~ 14mmFPC thickness: ≦0.6mm (Excluding jig)Applicable pitches of ComponentsSMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,min. ball 0.2mm;Applicable PCB TypesApplicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,medical power equipment, aerospace and aviation, besides general electronics products.

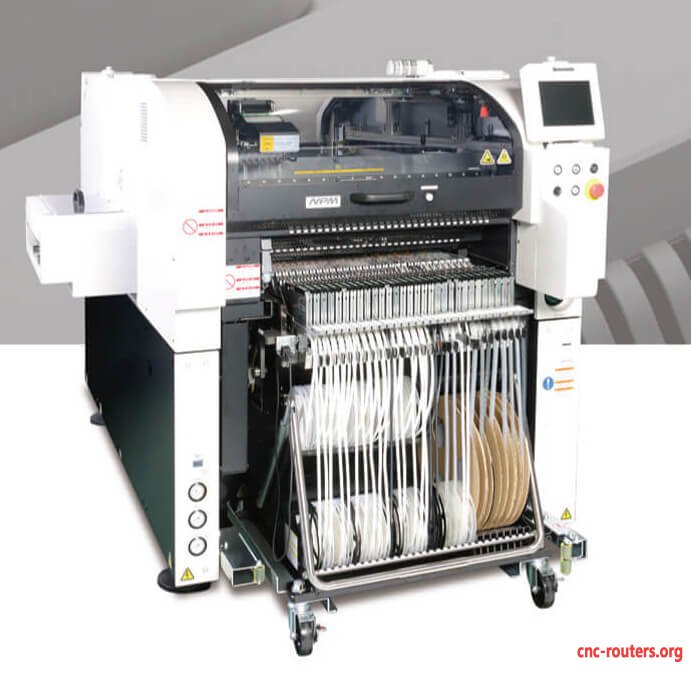

3.Panasonic NPM-W2 Pick and place machine

Plus new enhancements:Board handling up to 1,490 x 550mm (58.1 x 21.6")Quick-change feeder carts and nozzle banksCompatible with CM & AM series intelligent feeders & nozzlesBoard warp detection, Advanced Process Control (APC), and Auto Board Support PinIndustry's first 3D Multi Recognition CameraLightweight 16-nozzle head (for 77,000 CPH)Increased placement accuracy to 25um (cpk ≥ 1.0)

4. high production Capacity Reflow oven KTR 1000.

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

Keywords:

SMT Assembly line, PCB Assembly line, LED Production line, Automatic SMT Assembly line,Semi Automatic SMT Assembly line, JUKI Assembly Line, Samsung Assembly Line, Hanwha Assembly Line, Panasonic Assembly Line, FUJI Assembly Line, Yamaha Assembly Line.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven Manufacturer, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT Inspection Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: [email protected]

FAQ1) This is the first time I use this kind of machine, is it easy to operate?There is English manual or guide video that show you how to use machine.If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.2) If machine have any problem after I receive it, how can I do ?Free parts send to you in machine warranty period.If the part is less than 0.5KG, we pay the postage.If it exceeds 0.5KG, you need to pay the postage.3) MOQ ?1 set machine, mixed order is also welcomed.4) How can I buy this machine from you? ( Very easy and flexible !)A. Consult us about this product on line or by e-mail.B. Negotiate and confirm the final price , shipping , payment methods and other terms.C. Send you the proforma invoice and confirm your order.D. Make the payment according to the method put on proforma invoice.E. We prepare for your order in terms of the proforma invoice after confirming your full payment.And 100% quality check before shipping.F.Send your order by air or by sea.5)Why choose us ?A. Gold supplier on Alibaba !B. Trade assurance to US$54,000 !C. Best price & Best shipping & Best service !
