Detailed Description

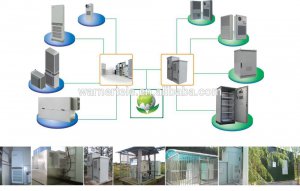

New technology Electrical outdoor enclosure making machine
Shenzhen Superda Machine co., Ltd is a China roll forming machine fabricator, Superda professional roll forming machine mainly is highway guard rail roll forming machine,cable tray roll forming machine floor deck roll forming machine and electronic cabinet enclosure machine. And other hand, the storage rack roll forming machine,solar rack roll former etc roll former or roll former design all is our job expertise.
Metal box distribution forming line technology parameter
Hydraulic press,Hydraulic hole punching system;Hydraulic Function,Hydraulic punch breach (Mould 1 set);Hydraulic pressure,16MPa;Hydraulic station,18.5KW;Roller station,20 stations and add Rub-roll to make sure the surface profile no scratches;Side Panel,T18mm A3 steel Heavy duty;Rolling speeding,2-8 m/min;Roller material,GCr15 overall quenching hardness HRC56-62 ℃;Motor power,7.5KW;Main Roller,Dia75mm;Equipment base,45 # H type using welded steel plate;Transmission,chain drive;Security,emergency stop buttons with;PLC control system,Siemens;Inverter,Taiwan Shilin;Encoder,Omron;Touch screen, Siemens;
Roll forming machine process2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack
Machinery main components of the brand:PLC control system: SiemensInverter: Taiwan ShilinEncoder: Omron Touch screen: SiemensSome components are Schneider brand devices.
Ⅴ,Devices completed electronic distribution panel prodution line
No. Machine name QTY REMARK
1 Uncoiler straightener 1
2 Servo Feeder 1
3 Hydraulic machine 1 With mould
4 Guide device 1
5 Forming machine 1
6 Hydraulic machine 1 With mould (2 sets)
7 Follow Shear 1 Including knife
8 Collect rack 1
9 Control system 1
10 Box bending machine 1 With mould
Ⅵ, Power distribution box machine accessories brand
No. Name manufacturer
1 Motor & Reducer Domestic brands
2 The main key bearing Domestic brands
3 Inverter Shilin
4 PLC Systems Siemens
5 Low-voltage electrical Schneider
6 Encoder Omron
7 touch screen Siemens
8 Hydraulic system Domestic brands
The advantage of electrical outdoor enclosure roll forming machine
The entire forming line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Electrical outdoor enclosure production line video link
